Features

RT115 Tube Production Line is to produce round tube diameter of 32-127mm and wall thickness of 1.5-5.0mm.

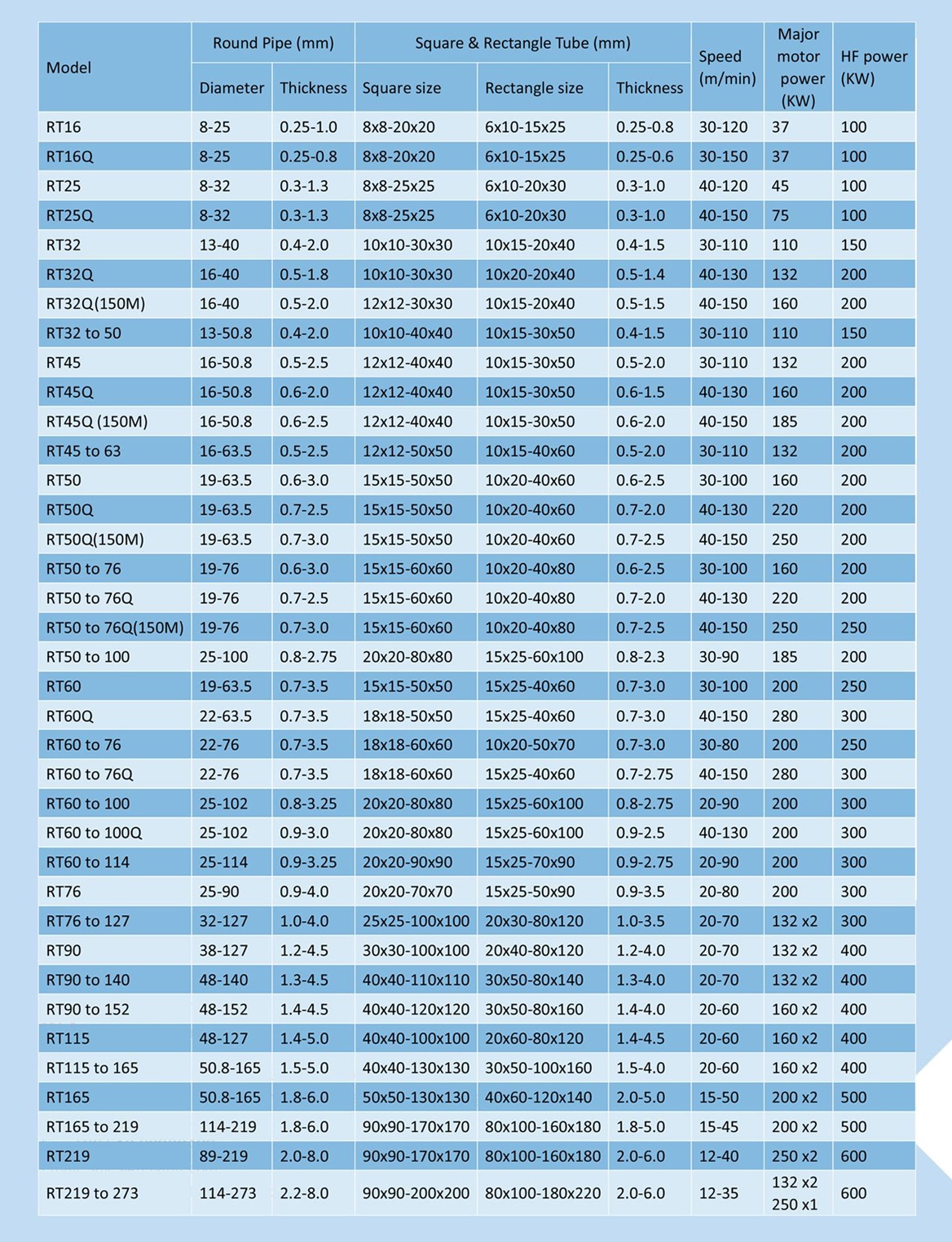

We can also supply the customized machines, almost 30 standard models, covering range from 3/8’’(8mm) up to 10’’(273mm) diameter (corresponding square & rectangular tubes) and wall thickness from 0.3mm up to 12.7mm, also accept customized machines.

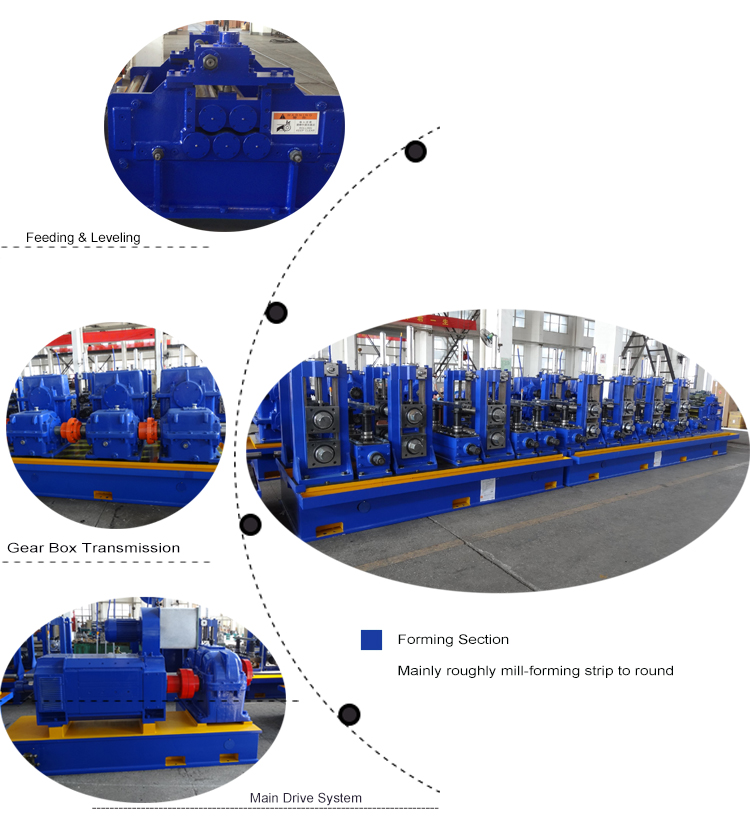

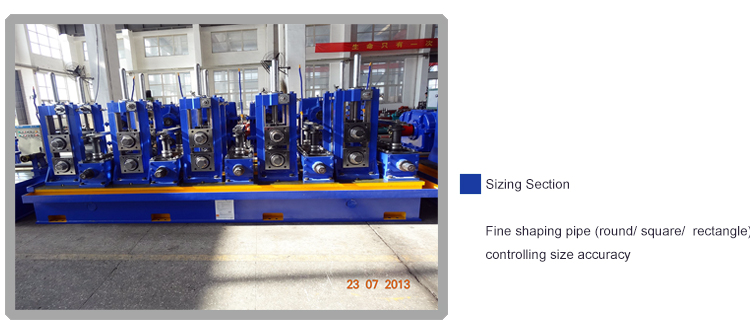

RT115 Tubing Line is a series of machines that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. The round pipe will then be sent into the weld box where the tube is welded by a high frequency or solid state welder. The welded pipe will be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled.

Application

1. Water pipe

2. Heating pipe

3. Low-pressure process pipeline

4. Low pressure fire fighting pipeline

5. Sewage Pipes

6. Steel Scaffolding Pipe

7. Wire and cable protection pipe

8. Structural support Steel Pipe

9. Industrial Steel Pipes

10. Decoration Pipe

11. Oil & Gas Pipes

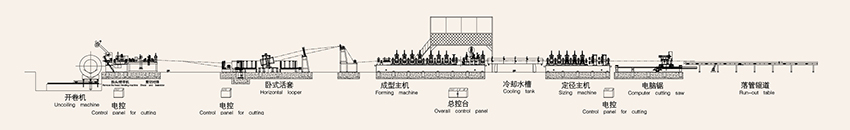

Process Flow

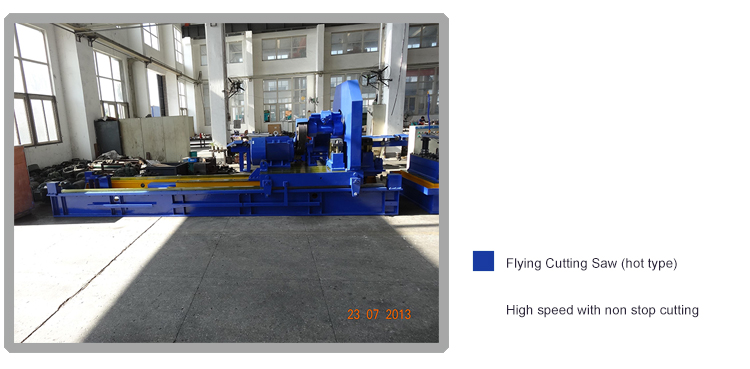

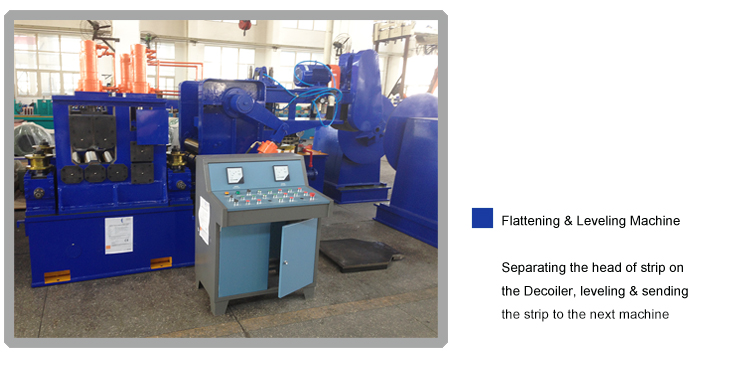

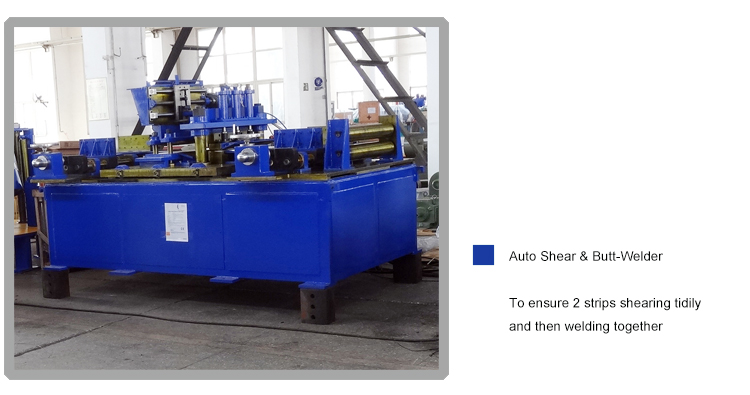

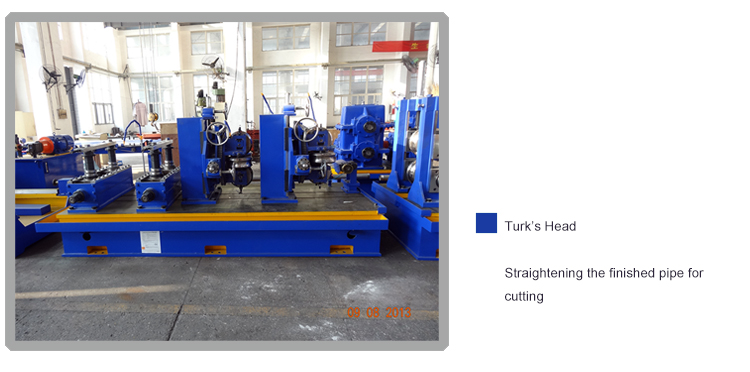

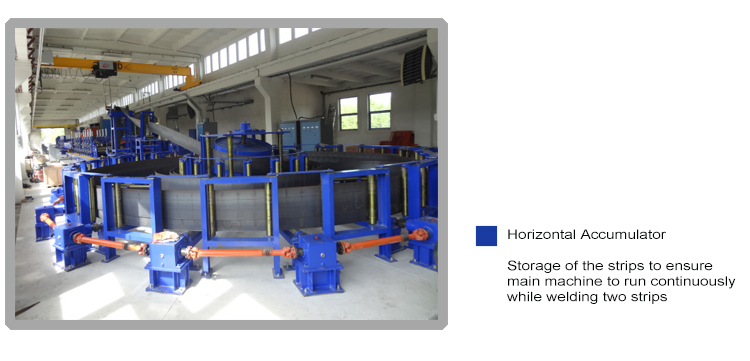

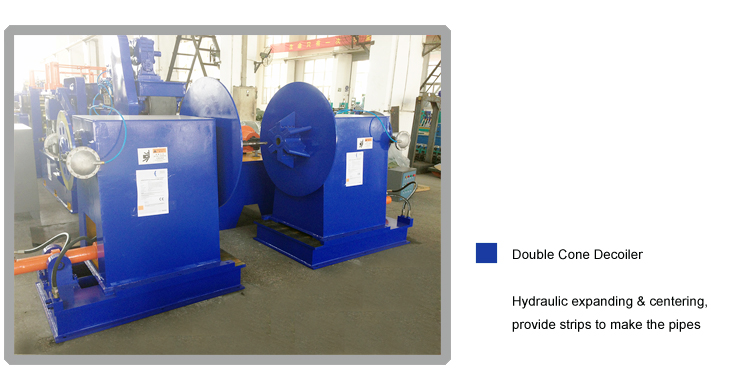

Slit Coil ---- Un-Coiler ---- Snubber Roller ---- Pinch Roll & Leveling Machine---- Shearing And Butter Welder ---- Storage/ Accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting Saw ---- Run Out Table ---- Finishing ---- Pipe Collecting and Packaging

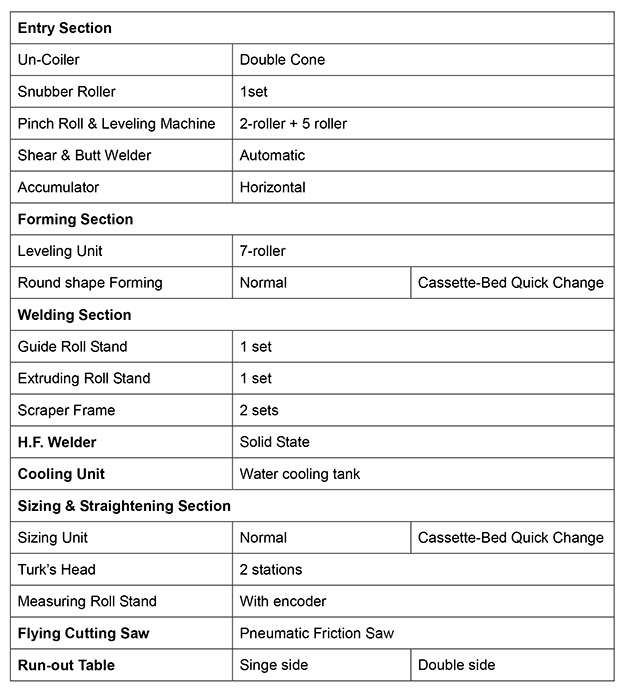

Machine Configuration
