High Speed Slitting Line

Cut to Length & Slitting Line

High Speed Slitting Line

We produce series cut to length line and slitting line with abundant skill, technology and experience for more than 20 years. We produce approximately 200 lines per year, and have a professional customer support department for the installation, commissioning, training and maintenance with 40 people.

Product Detail
Product Description

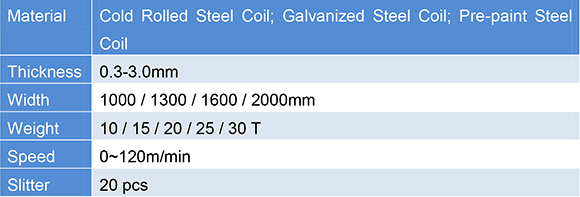

Parameter


1. This line is used for slitting steel coils with different specifications (width/thickness) to be needed width strips. The main working flow is: decoiling – leveling – slitting – recoiling

2. This line is reasonable in layout, easy operation, high level of automation, high productivity which could processing all kinds of CR and HR coil, silicon coil, stainless coil, colored coil, galvanize coil or painted coil.

3. This slitter line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc.

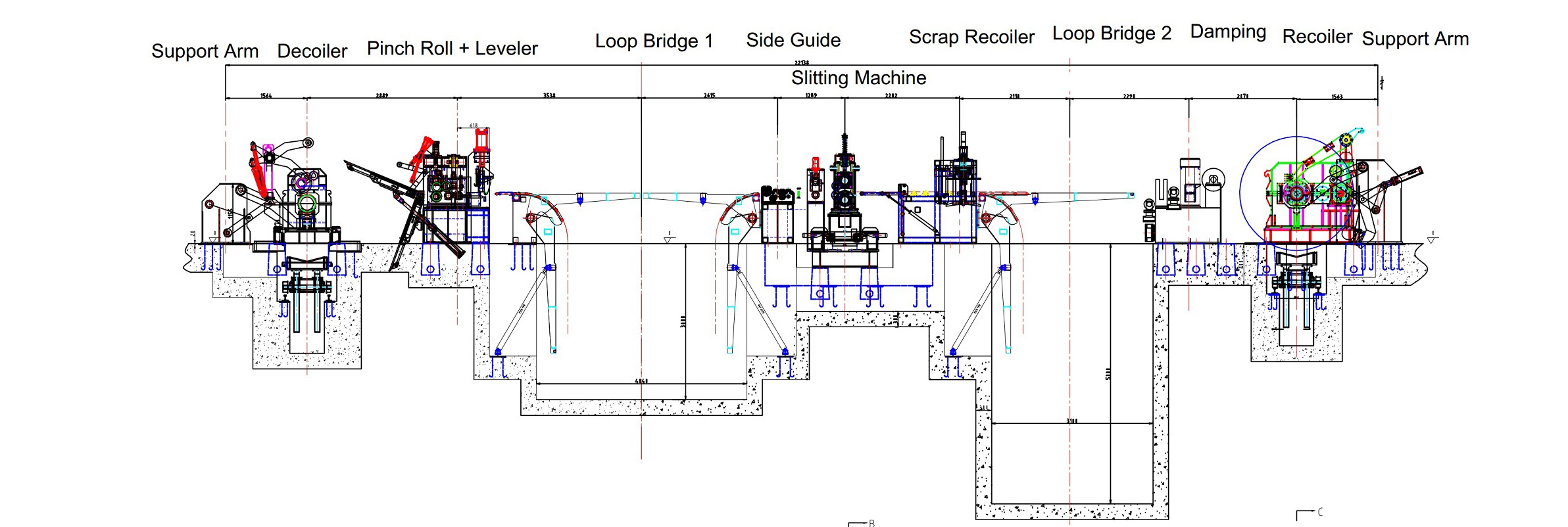

4. It is composed of coil car, decoiler, slitter, scrap recoiler, shearer cutting coil head or tail, tension pad and recoiler, etc. As well as pendulum middle bridge, pinch device.

5. It is an auto coil processing equipment which integrates mechanical, electrical, hydraulic, and pneumatic all together. 流程图-.jpg We also supply the 0-60m/min slitting line, different cut to length lines.

High Speed Slitting Line-3-.jpg
