Features

RT28 Carbon Steel Tube Mill is to produce round tube diameter of 10-38mm and wall thickness of 0.5-1.5mm.

We can also supply the customized machines.

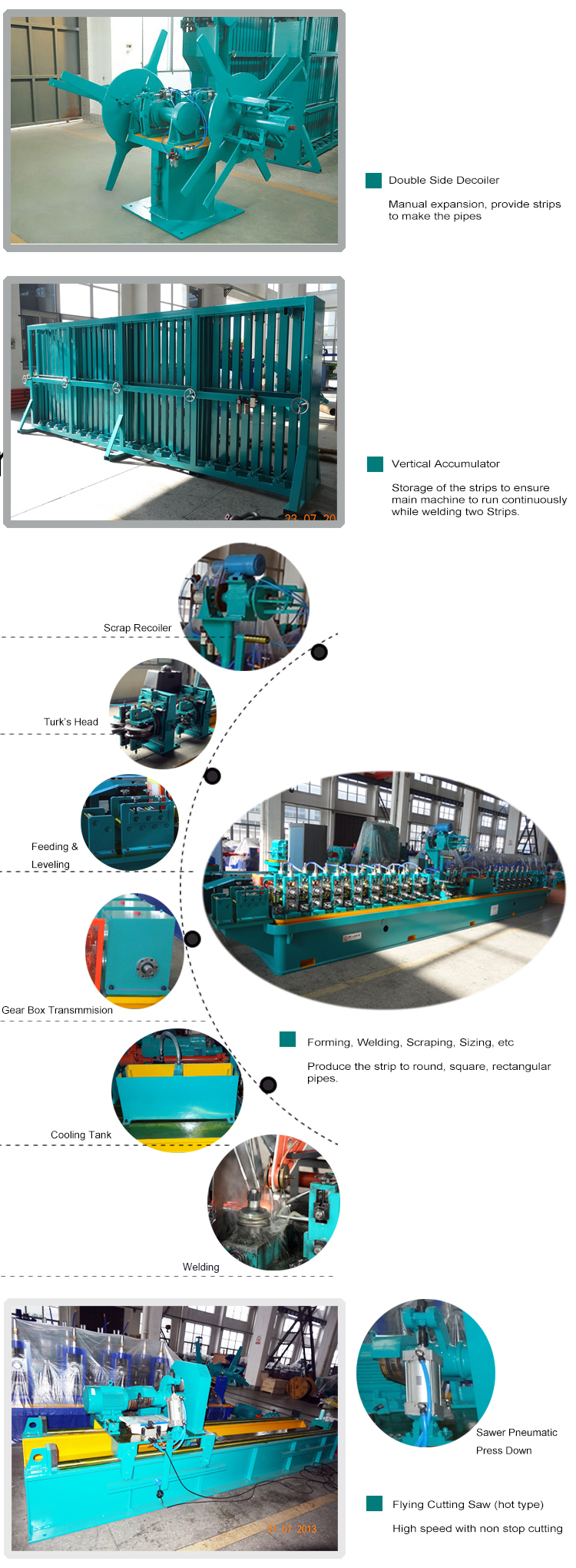

RT28 Carbon Steel Tube Mill is a series of machines that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. The round pipe will then be sent into the weld box where the tube is welded by a high frequency or solid state welder. The welded pipe will be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled.

Application

 1. Water pipe

 2. Heating pipe

 3. Low-pressure process pipeline

 4. Low pressure fire fighting pipeline

 5. Sewage Pipes

 6. Steel Scaffolding Pipe

 7. Wire and cable protection pipe

 8. Structural support Steel Pipe

 9. Industrial Steel Pipes

 10. Decoration Pipe

11. Oil & Gas Pipes

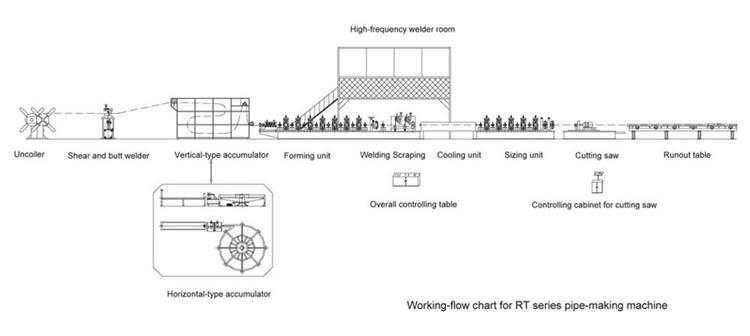

Process Flow

Slit Coil ---- Un-Coiler ---- Shearing And Butter Welder ---- Storage/ Accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting Saw ---- Run Out Table ---- Finishing ---- Pipe Collecting and Packaging
