The RT32 pipe rolling mill is intended for manufacturing of round/square pipe of Φ13mm-Φ50.8mm with Thickness of 0.6mm–2.0mm from cold-rolled, hot-rolled and galvanized coil strip.

Features of RT32 Pipe Making Machine

This RT32 automatic pipe production line is used to produce straight seam automatic oil pipes and tubes by means of steel slit strips with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal straight seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.

Finished product will be of round, square, rectangular pipe.

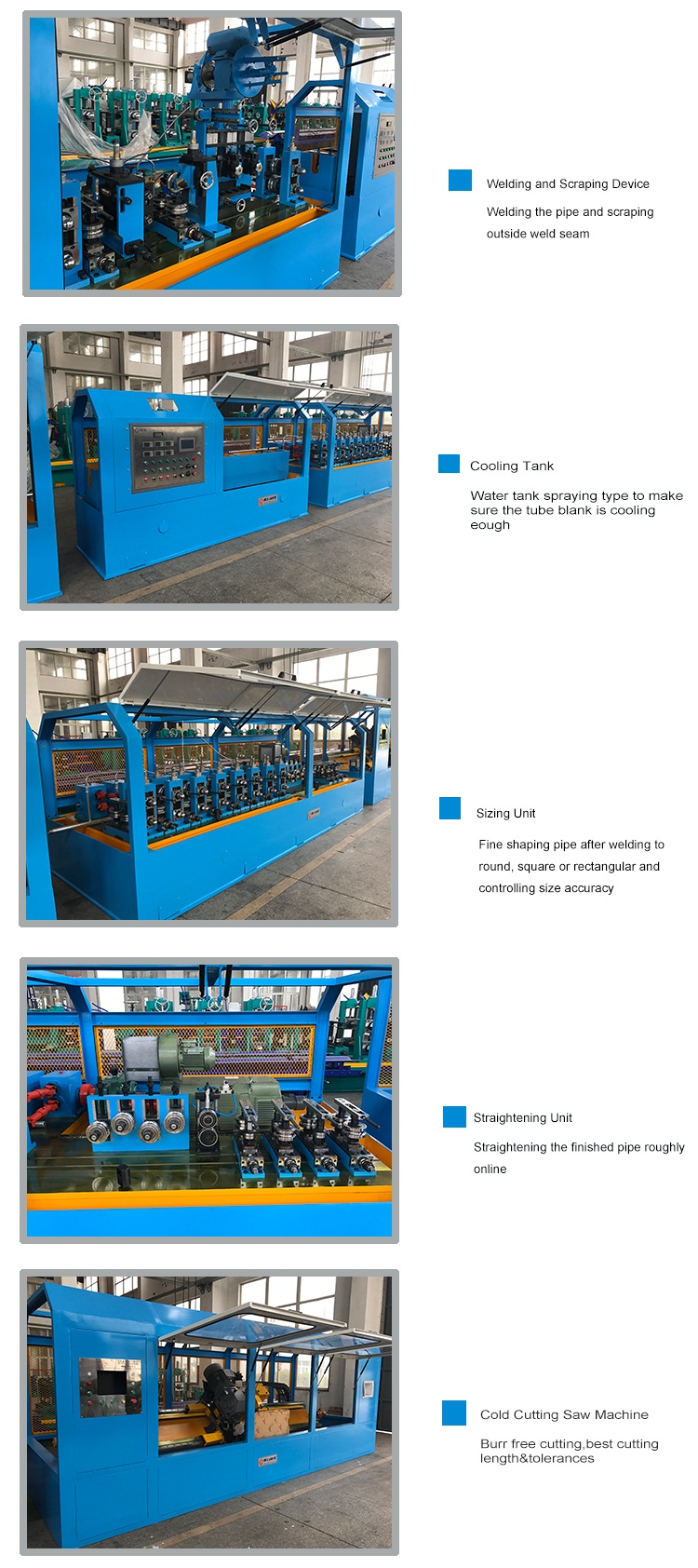

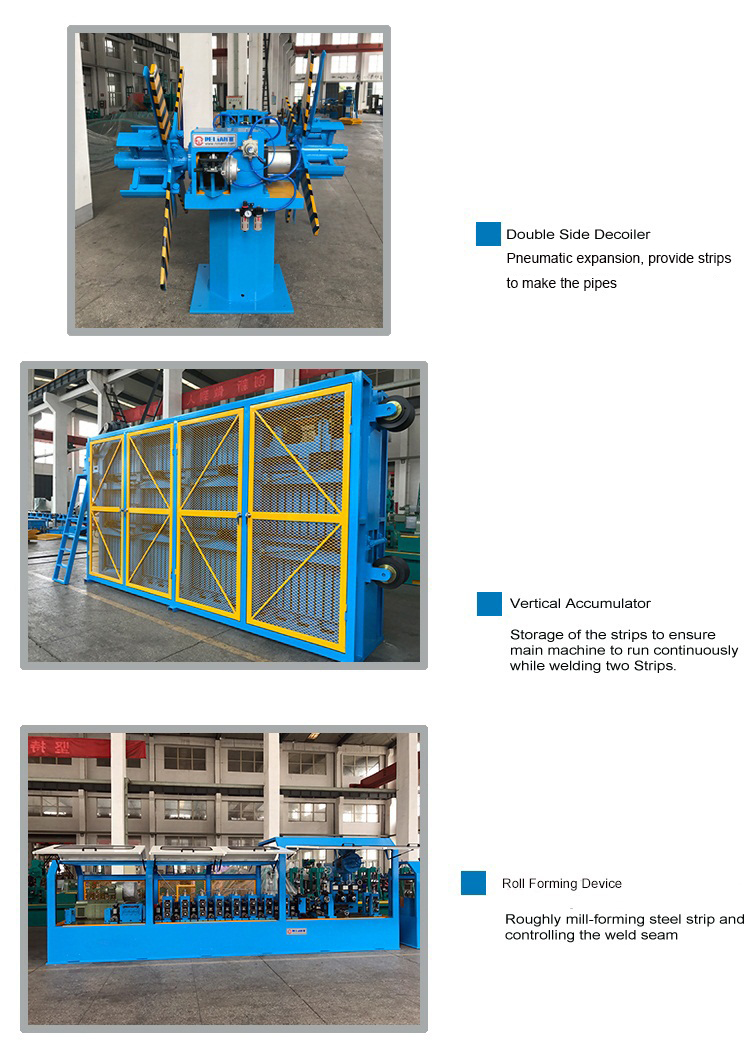

Process Flow of Steel Pipe Mills

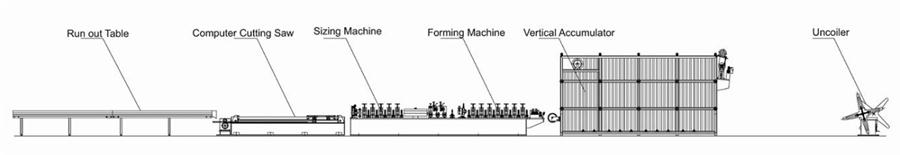

Slit Coil  ---- Un-coiler ----Storage/ Vertical accumulator ---- Forming ---- Welding ---- Cooling ---- Sizing ---- Cutting saw ---- Run out table ---- Finishing ---- Pipe collecting and packaging

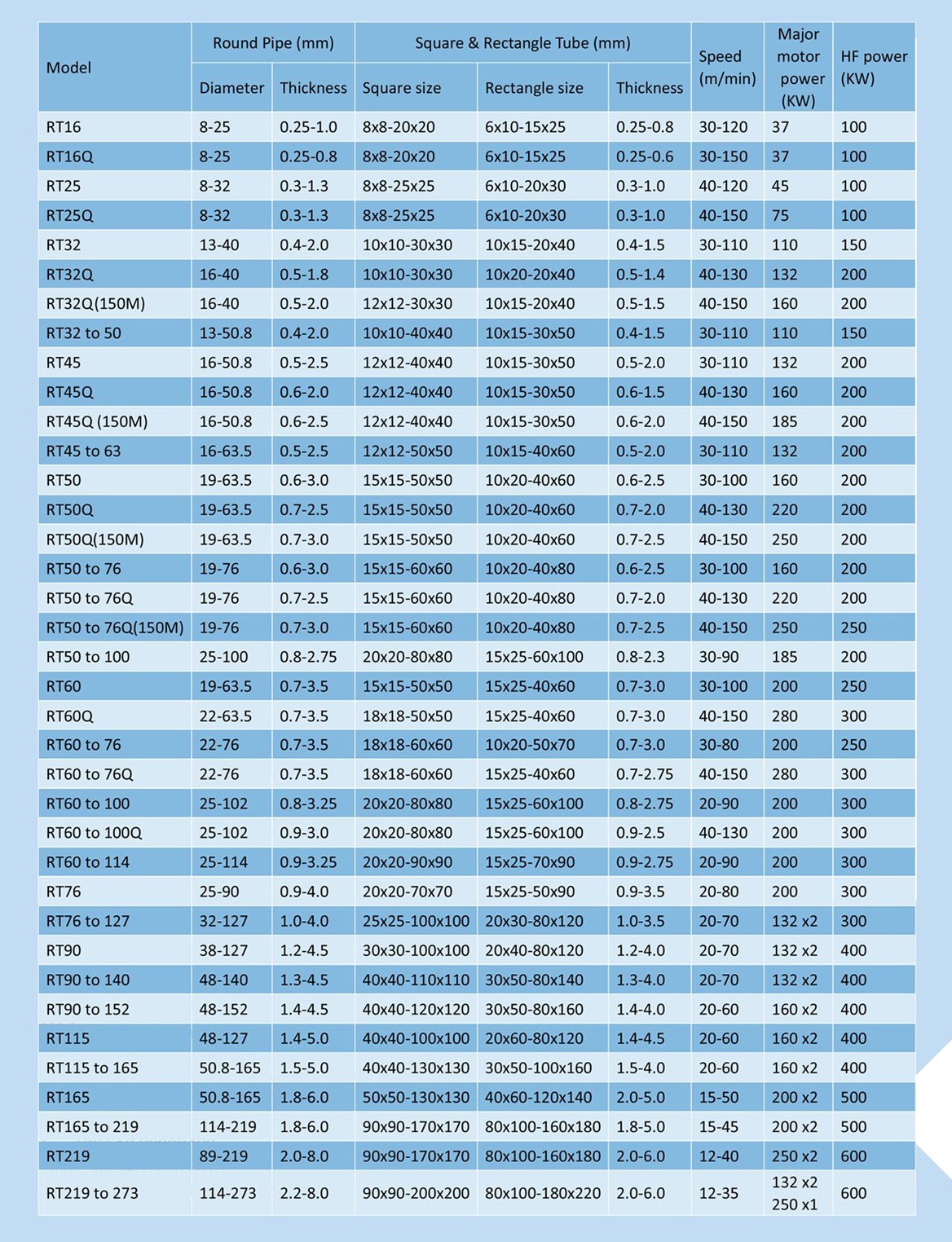

Technical Parameter for RT32 straight seam Tube Mills

Specification:

1.1. INPUT

(1). Material: Low-carbon steel (Q195, Q235)

(2). Thickness: 0.6-2.0mm (SQ, REC Pipe: ≤1.5mm)

(3). Slit width: 40-160mm

(4). Coil Weight (Slit Coil) : ≤1500 kg

(5). Coil ID: 350-450mm

(6). Coil OD: 800-1000mm

1.2. OUTPUT

(1). Round pipe dia. : 13-50.8mm

      Wall thickness: 0.6-2.0mm

(2). Square Tube Size : 10×10-40×40mm

       Wall thickness : δ≤1.5mm (SQ, REC Pipe)

(3)  Length : 4-8meter (can be longer)

(4). To-length accuracy: ≤±3mm

1.3 LINE DATA

(1). Line Direction (optional) : From Right to Left or from Left to Right

     (Viewed from operator side; will be double confirmed)

(2). Line Speed : 20-90/min

(3). Power for equipment motor : about 131.5KW

(4). Power for HF electric : 150KW (Solid State)
