RT530×13 high-frequency longitudinal welded pipe production line is mainly used for the production of round pipe φ219~φ530mm, wall thickness 4.0~13.0mm, square tube 170×170 - 400×400mm, wall thickness 4-10mm, and rectangular tube 260×130 - 400×200mm, wall thickness 4-10mm.

It adopts high-frequency induction welding and straight seam welding. Its working principle: weld the edge of the pipe when heated in a magnetic field, and then compress the edge in automatic mode, and the pipe moves continuously along the production line.

This high-frequency welding pipe mill is specialized equipment to produce high frequency straight seam welded pipes for structural pipe and industrial pipe. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.

Process Flow

Coil Strips→Coil Car→Uncoiler→Snubber Roller→ Pinch Roll and Leveler→ Automatic Shear and Butt Welder→Horizontal Spiral Accumulator→Side Guide Device→Edge Trimming Device→Scrap Chopping Device→Ultrasonic Testing Unit (for plate)→Feeding Device→ Forming Unit→High Frequency Welding Unit→Deburring Device (inside and outside)→Grinding Unit→Ultrasonic Testing Unit (for pipe)→Intermediate Frequency Annealing for Welding Seam→Air Cooling →Water Cooling→Sizing Unit→Straightening Unit→CNC Milling Saw→Roller Conveyor →Straightening Machine→Chamfering Machine →Hydrostatic test→(manual inspection→ repair)→Measuring and Weighing and Label Printing→ Auto Stacking and Packing (with weighing)→Warehousing

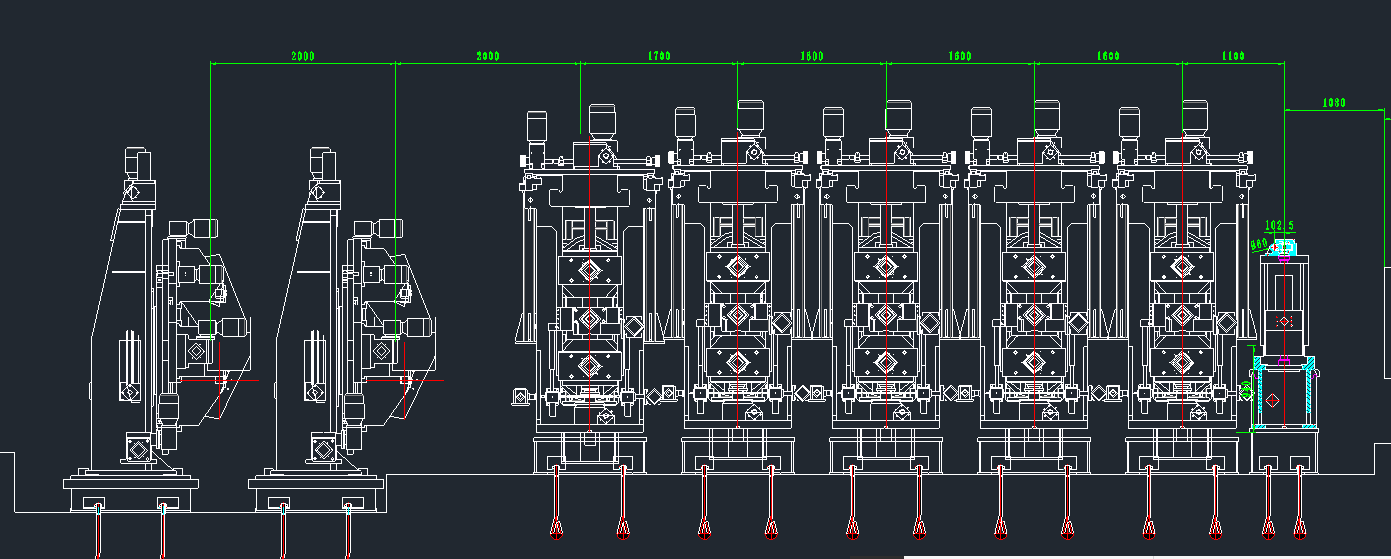

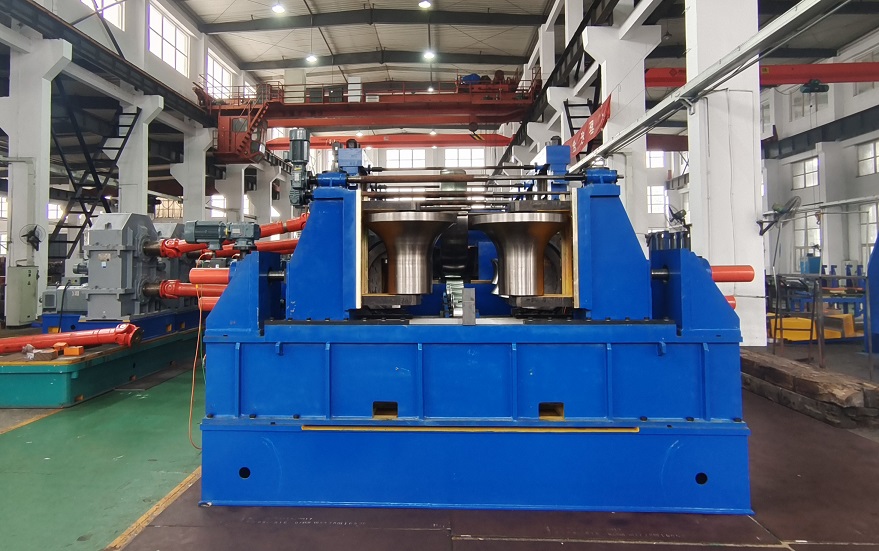

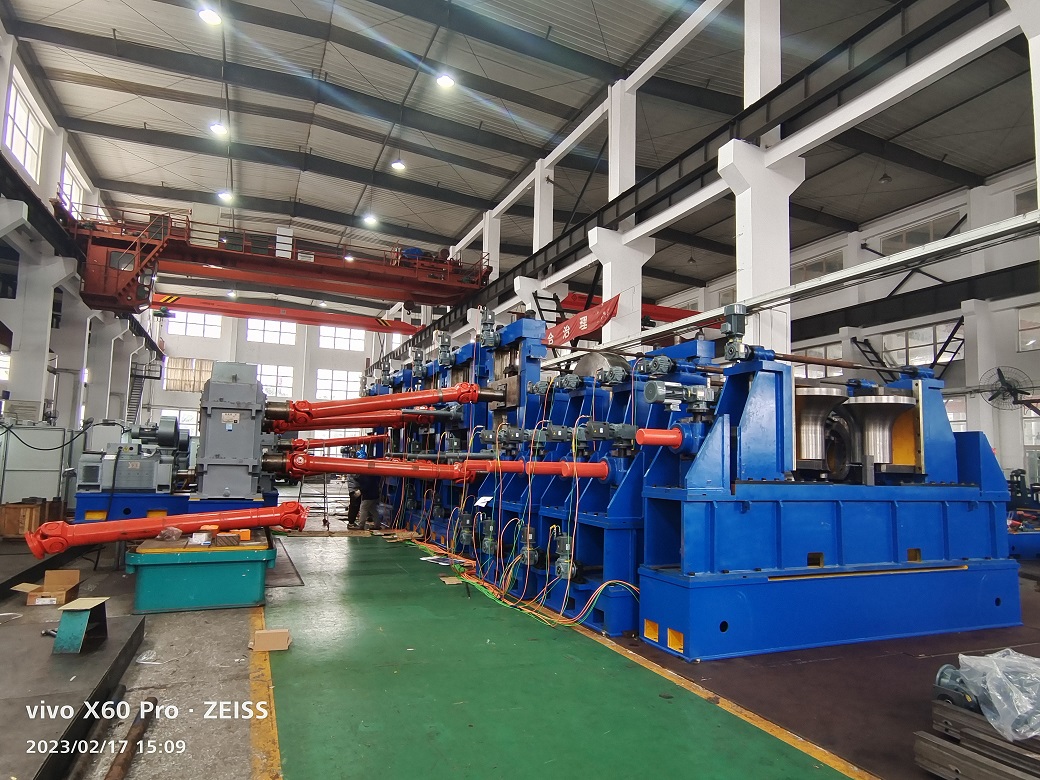

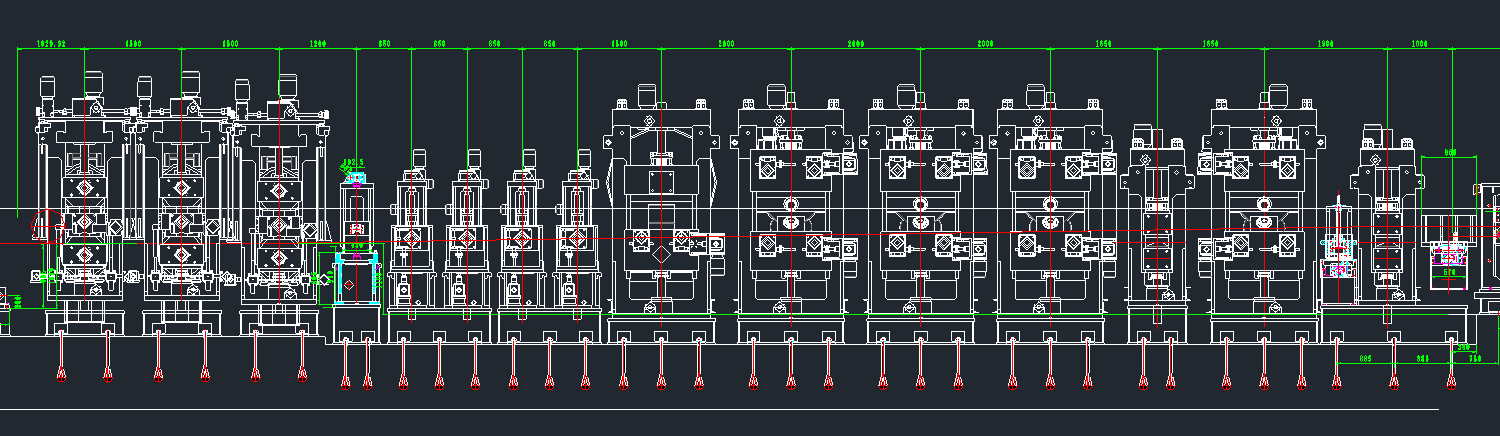

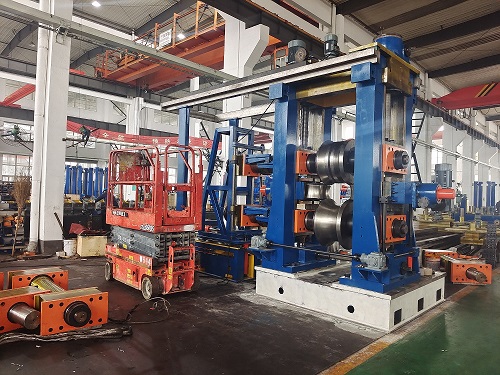

Main machine structure:
