Steel is the most popular metal widely used all over the world. However, it is easily to get rusty in the air, water and soil. That is to say, it always gets corrosive. Due to the corrosion resistance in the air of the zinc, also because of the low cost, the hot dip galvanizing is becoming the best way for antirust of the metal.

Compared with others for corrosion resistance, the hot-dip galvanizing products are with the following advantages: protectiveness for electrochemistry for coating; compactness for coating; endurance for coating; economy for coating and high efficacy for producing etc.

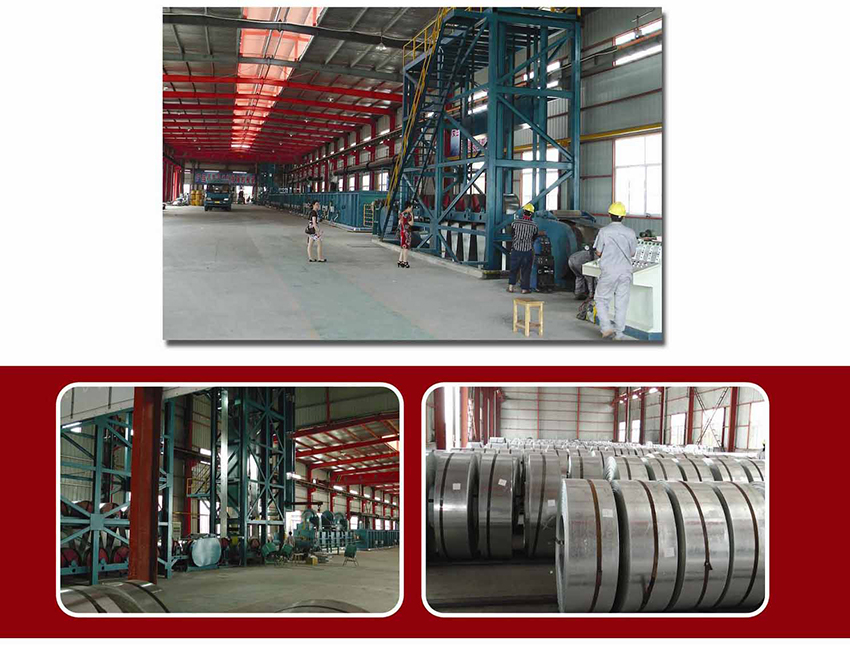

Process Flow

1# Decoiler --- 2# Decoiler --- Pinch Roll --- Hydraulic Shear --- Welding Machine --- 1# Tension Roller --- 1# Accumulator --- 2# Tension Roller --- Tension Test Roller --- Connector Unit --- Annealing Furnace --- Quick Cooling Device --- Tuning Roller --- Zinc Pot --- Cooling Tower --- Turning Roller --- 3# Tension Roller --- 2# Accumulator --- 4# Tension Roller --- Withdrawal & Straightening Machine --- 5# Tension Roller --- Hydraulic Shear --- Turning Roller --- Recoiler
