Spiral Tubeformer
Spiral Tubeformer

Spiral Tubeformer RTTF-1500 1. Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower 2. Large diameter range 3. High speed synchro flying cutting system 4. PLC control, convenient operation 5. Light and small, size work 6. Perfect swage, without leakage

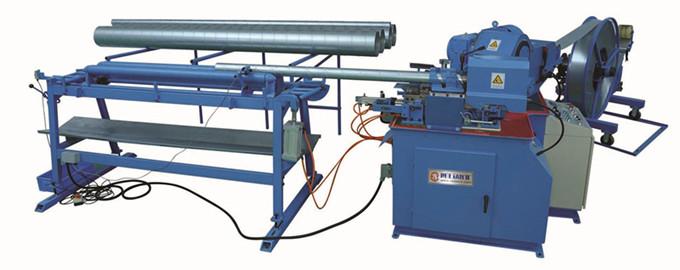

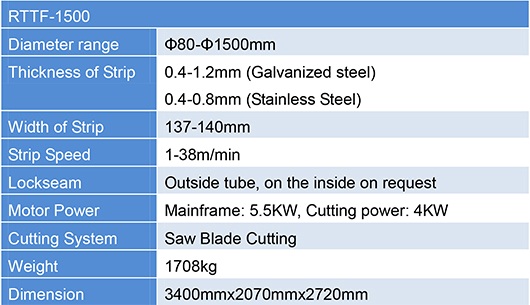

Spiral Tubeformer RTTF-1500


1. Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower

2. Large diameter range

3. High speed synchro flying cutting system

4. PLC control, convenient operation

5. Light and small, size work

6. Perfect swage, without leakage

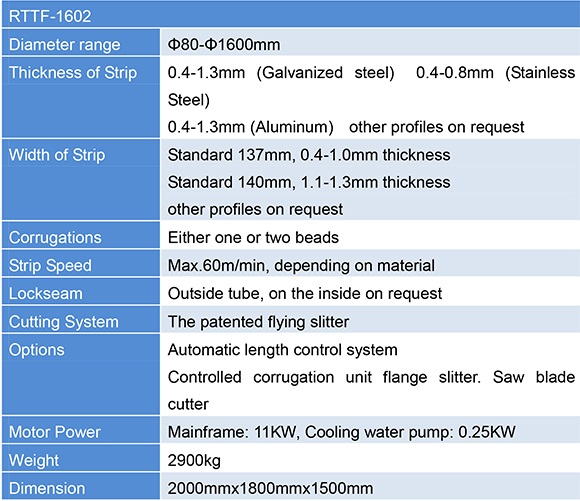

Spiral Tubeformer RTTF-1602



1. The module technique gives the customer the possibility to choose between a number of options, allowing him to create a machine a number for is specific needs.

2. The frequency controlled man drive ensures a smooth acceleration and an almost noiseless operation.

3. The outstanding patented flying slitter cuts the tubes to length without noise of hot sparks as known from the saws and provides smooth tube ends without deburring.

4. The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum.

5. The corrugation unit allows a reduction in
