We can also offer the FINISHED PRODUCTS for kinds of special profiles according to customers’ drawings, such as:

1. fireproof and heat insulation door and window partition

2. fireproof curtain wall according to customers’ drawings

3. Photovoltaic Solar support

Features

The C size auto change roll forming machine for C purlin profile is designed for the purpose of automatic size changing via both frames being freely adjustable.

PLC control system with Simatic Panel Touch, through adjustment is fully power driven.

When required, punching and shearing device can be avaible

Auto C features high efficiency, easy handling, quick size changing and security

Profile Parameters:

Thickness: 1.5-3.0mm

Web width ranges from 80-300mm

Flange height ranges from 40-80mm

We can also supply the customized machines.

Application:

The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

Process Flow

Uncoiler --- Feeding --- Straightening --- Pre-punching --- Roll Forming --- Cutting --- Exit Rack

Machine Configurations

1.      Hydraulic Uncoiler

2.      Feeding Device

3.      Straightening

4.      Pre-punching

5.      Roll Forming Machine

6.      Post Cutting

7.      PLC Control System

8.      Exit Rack

•

  Roll Forming Machine

•

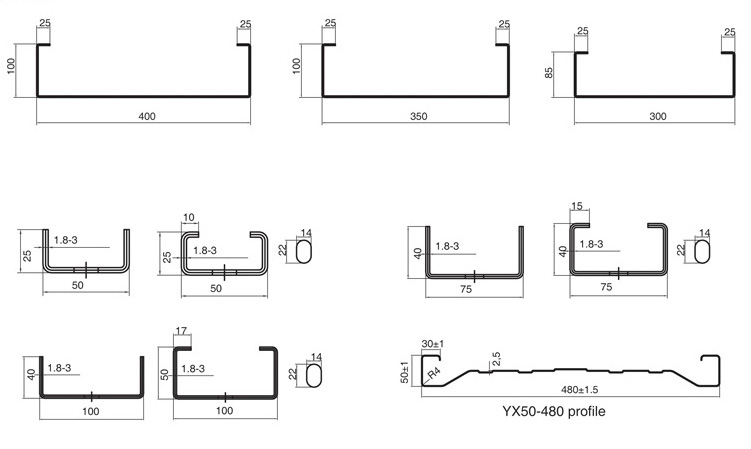

  Sample 1

•

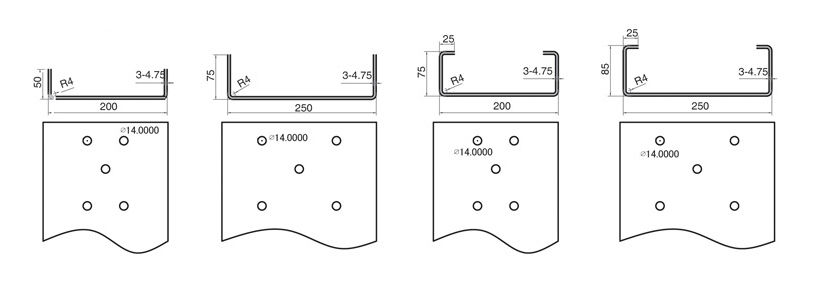

  Sample 2
