We can also offer the FINISHED PRODUCTS for kinds of special profiles according to customers’ drawings, such as:

1. fireproof and heat insulation door and window partition

2. fireproof curtain wall according to customers’ drawings

3. Photovoltaic Solar support

Features

This machine can be used to produce 2 different profiles of corrugated steel sheets (2 wall & roof sheets) or 1 wall & roof sheet and 1 floor decking sheet. It makes two different metal sheets without changing any rollers or cutting dies because there are two sets of rollers in this machine.

For exchange of profile type the roll forming machinery’s roll consists of a two story from in order to produce two kinds of products from one roll forming machinery frame. It provides great advantages such as minimizing installation space and increasing productivity.

After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

We can also supply the customized machines.

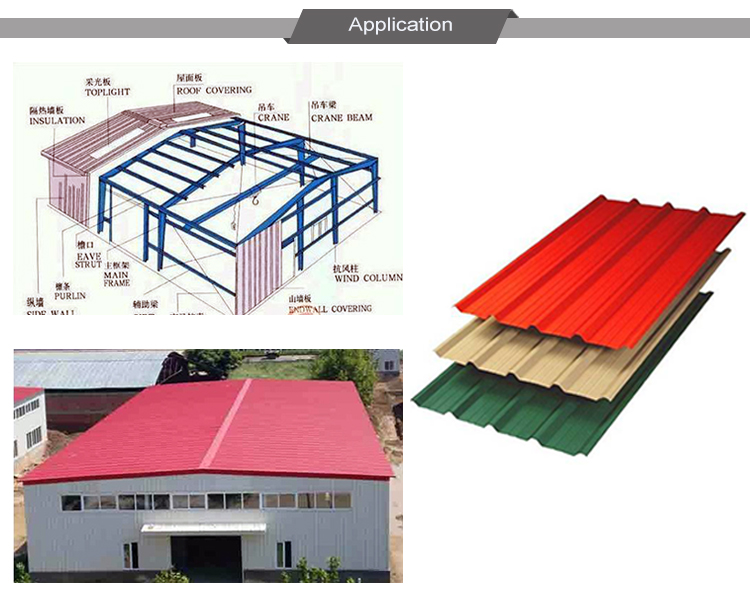

Application:

The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

Process Flow

Uncoiler 1 --- Uncoiler 2 --- Entry Bench --- Pre-Shearing --- Roll Forming --- Cutting --- Exit Rack

Machine Configurations

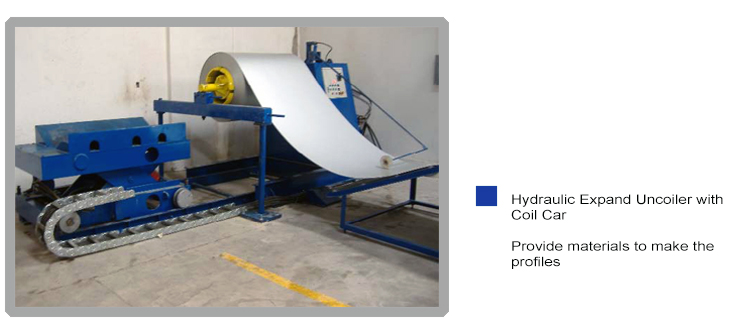

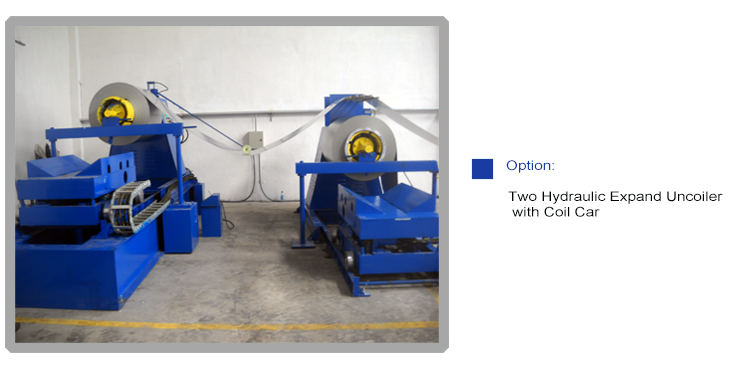

(1)   Two (5+1) Ton×1250 Hydraulic Expand Uncoiler with Coil Car

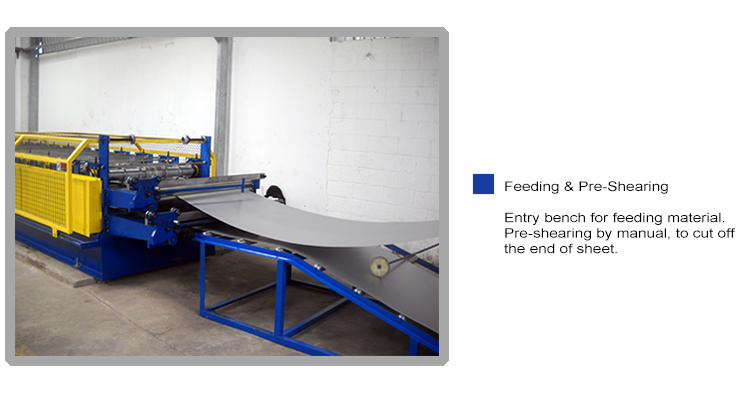

(2)   Entry Bench

(3)   Manual Pre-shearing Device

(4)   Polythene Film-on Device

(5)   Cold Roll Forming Line

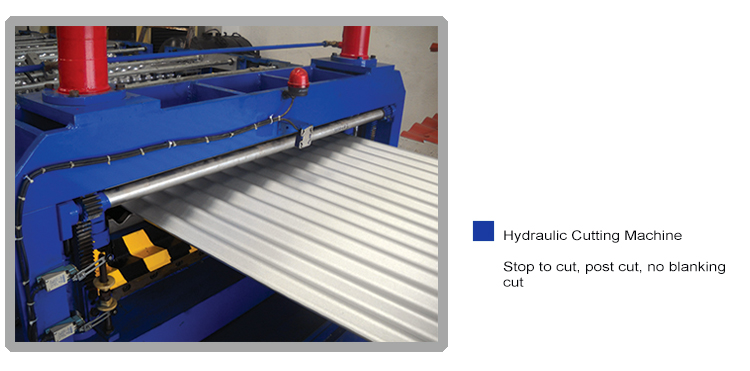

(6)   Hydraulic Cutting Machine

(7)   PLC Control System

(8)   Inkjet Printer

(9)   Exit Rack
