We can also offer the FINISHED PRODUCTS for kinds of special profiles according to customers’ drawings, such as:

1. fireproof and heat insulation door and window partition

2. fireproof curtain wall according to customers’ drawings

3. Photovoltaic Solar support

Features

Hollow guide rail production line is designed for making various elevator hollow guide rails with the wall thickness 2.3mm-3.2mm. This new type producing line has advantages like high precision, high processing speed. Its processing speed can be times of traditional one.

We can also supply the customized machines.

Application

The finished products are widely used in elevator, etc.

Process Flow

Uncoiler ---- Shear & Butt Welder ---- Accumulator ---- Leveling ---- Roll Forming --- Flying Cutting --- Run Out Table

Machine Configurations

1.      Double Head Uncoiler

2.      Shear & Butt Welder

3.      Horizontal Accumulator

4.      Leveling

5.      Roll Forming Machine

6.      Flying Cutting Device

7.      Run Out Table

•

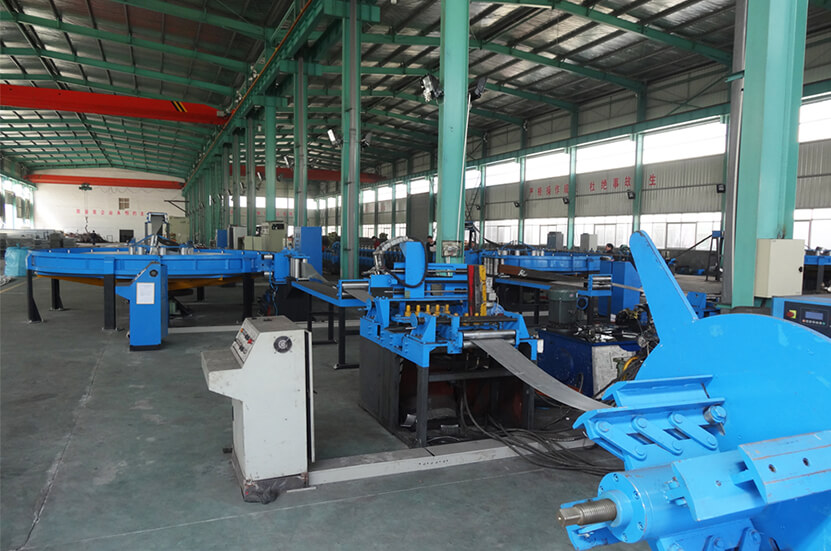

  Double Head Uncoiler, Shear & Butt Welder

•

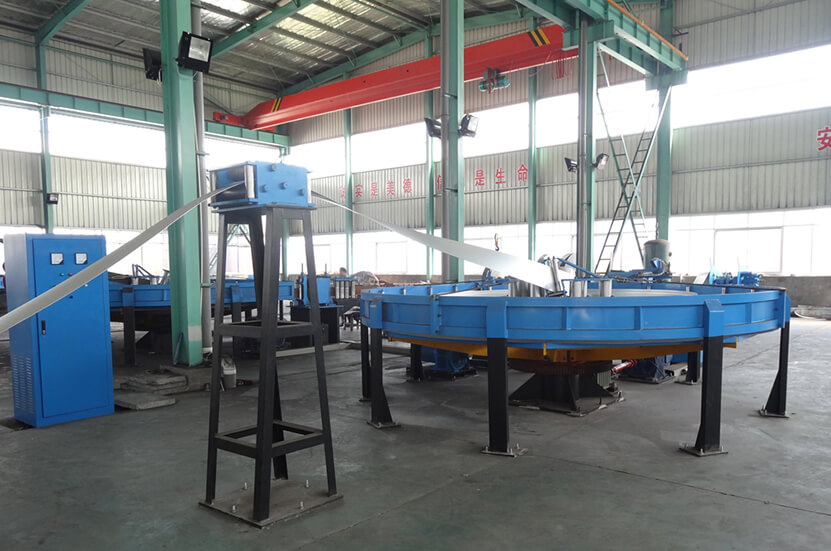

  Horizontal Accumulator

•

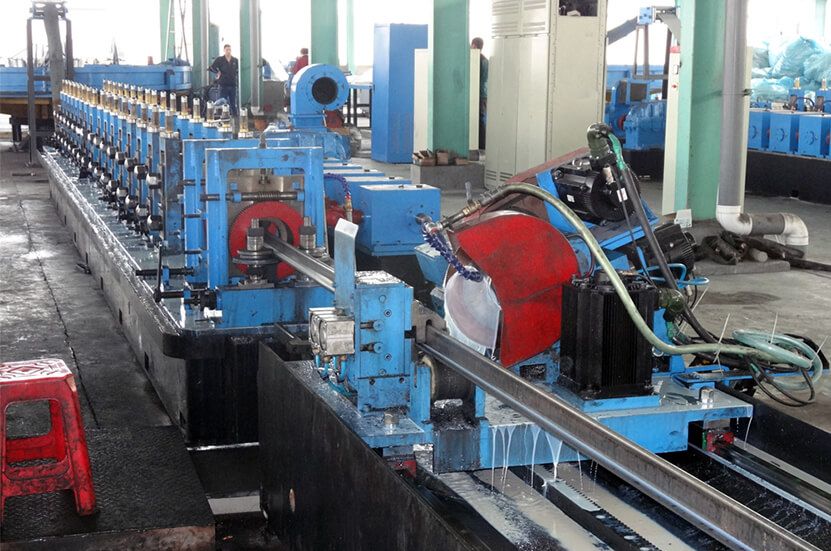

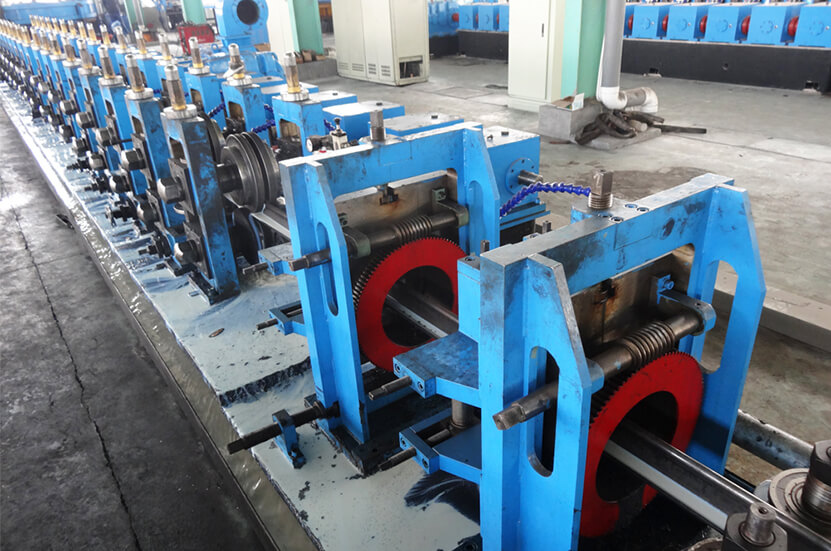

  Roll Forming Machine

•

  Flying Cutting Device

•

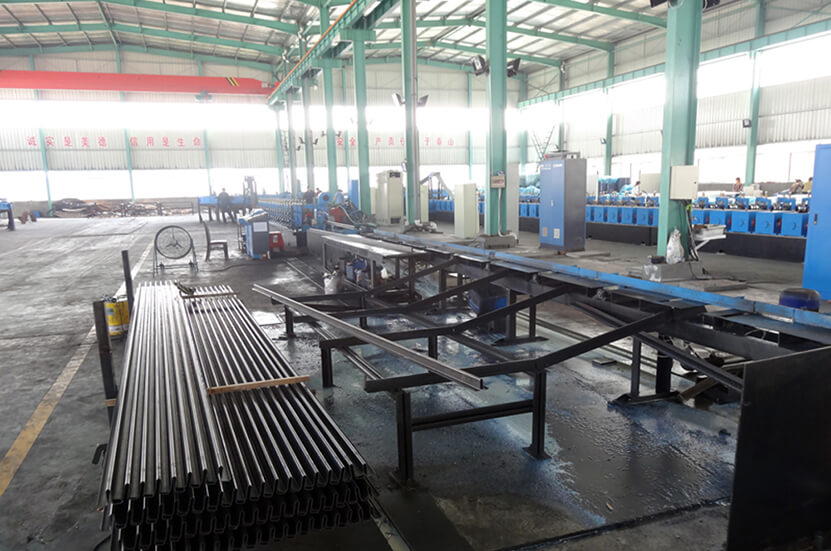

  Run Out Table

•

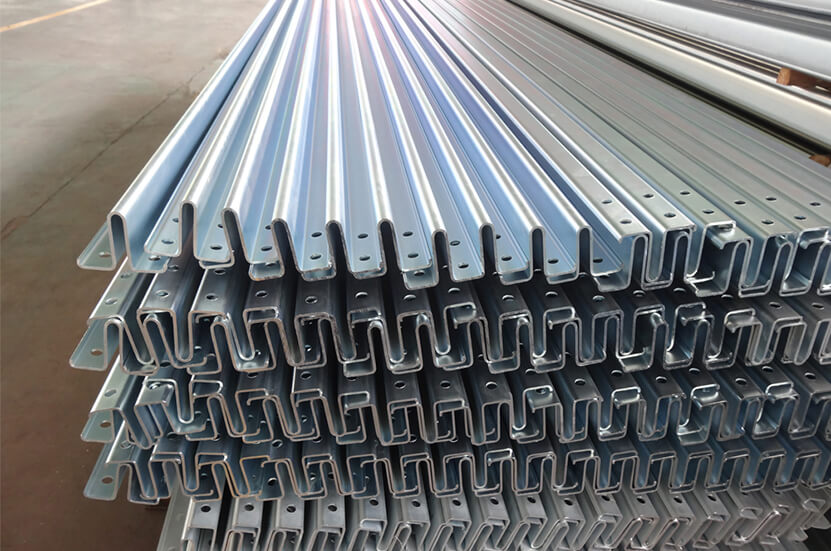

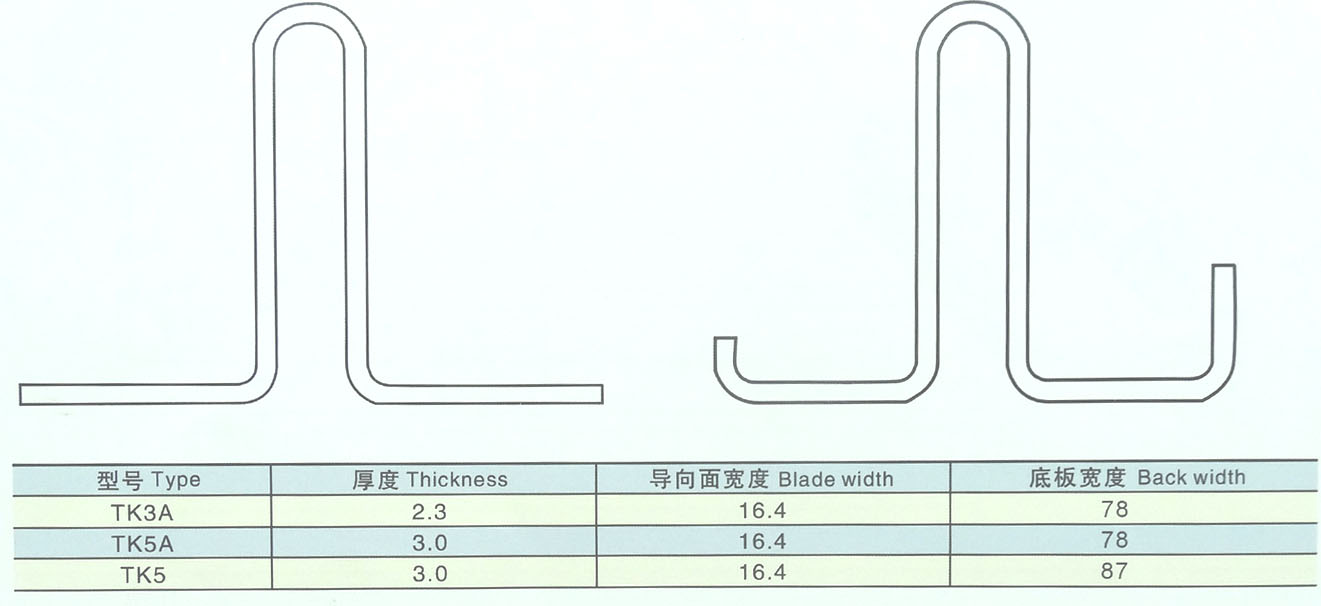

  Sample
