Roll Forming

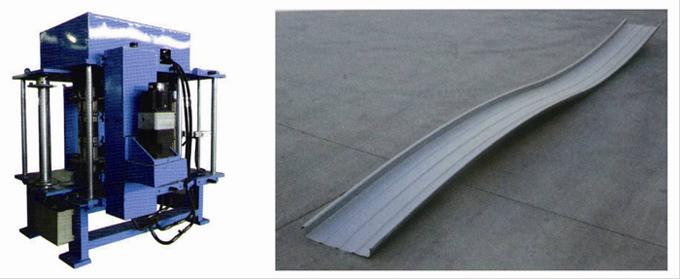

Auto Taper Curving Machine

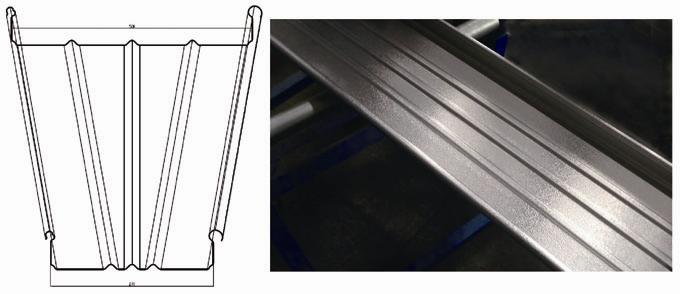

Sample

Features

This auto tapered and straight seam profile roll formers is used to form the pre-painted sheet/GI/GA and aluminum material to be the standing seam.

It is composed of the hydraulic un-coiler, polythene film-on device, motorized lateral shearing device, longitudinal slitting device, central rib forming unit, taper roll forming machine, hydraulic cutting machine (for straight profile), PLC control system, product rack, auto taper curving machine, etc.

We can also supply the customized machines.

Application:

The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.

Process Flow

Uncoiler --- Film --- Shearing --- Slitting Device --- Rib Forming --- Roll Forming --- Cutting --- Exit Rack --- Seaming

Machine Configurations

(1)   5Ton×800 Hydraulic Expand Uncoiler

(2)   Polythene Film-On Device

(3)   Motorized Lateral Shearing Device

(4)   Longitudinal Slitting Device

(5)   3 Stages to Form the Central Rib on the Bottom

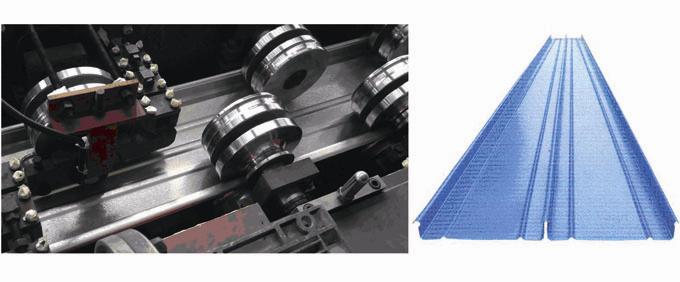

(6)   Taper Roll Formers

(7)   Hydraulic Cutting Machine

(8)   PLC Control System

(9)   Exit Rack

(10) Auto Taper Curving Machine
