The products of the whole line are used in light pole, flag pole, high mass pole, advertisement pole, signal tower, electricity power pole, wind generate electricity pole, large dimateres tube manufacturing, railway, highway, communication, making car, shop, spheric tank, steel structure, steel structure workshop and so on.
Processing Flow
1. Coil Cut to Length Line
2. Trapezoidal Cutting Line
3. Tandem Press Brake
4. Auto Pole Welding Machine
5. Pole Straightening Machine
6. Pole Bending Machine
7. Lamp Door Cutting Machine
8. Electrostatic spray line
9. Pole polishing Machine
10. CNC Flame/Plasma Cutting Machine

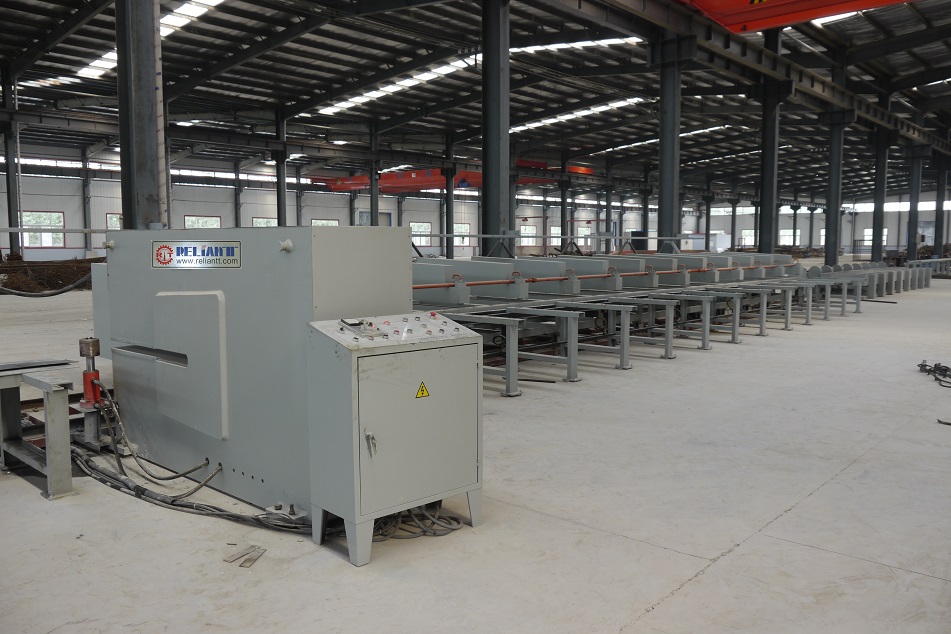

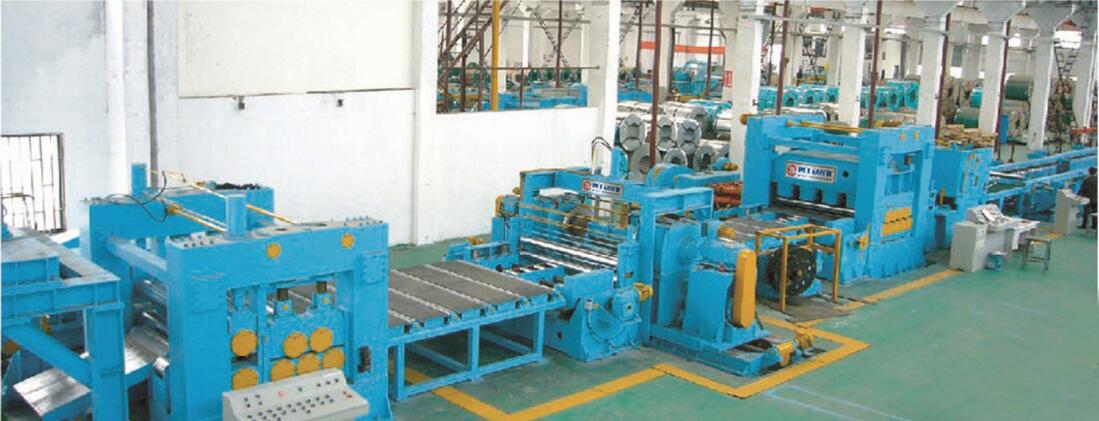

1. Coil Cut to Length Line
The cut to length line is foreseen to be suitable to process the Hot Rolled Coil and prepare completely flat & rectangular shape sheet in different widths & lengths called “PARALLELOGRAM”, suitable for manufacturing Octagonal Poles, High Mast Poles multisided, and Round Conical Poles.
It is composed of Decoiler, Snubber Roller, Pinch Roll & Pre-leveler, Edge Trimming & Recoiling, Main Leveler, Shear, Stacker, etc.
2.Trapezoidal Cutting Line
Trapezoidal Cutting Line is foreseen to be suitable to process the Hot Rolled Sheet coming from Decoiling machine and cut into trapezoidal shape, suitable for manufacturing Octagonal Poles, High Mast Poles multisided, and Round Conical Poles
One PARALLELOGRAM shape sheet will normally slited into two trapezoidal sheet in most of the cases.

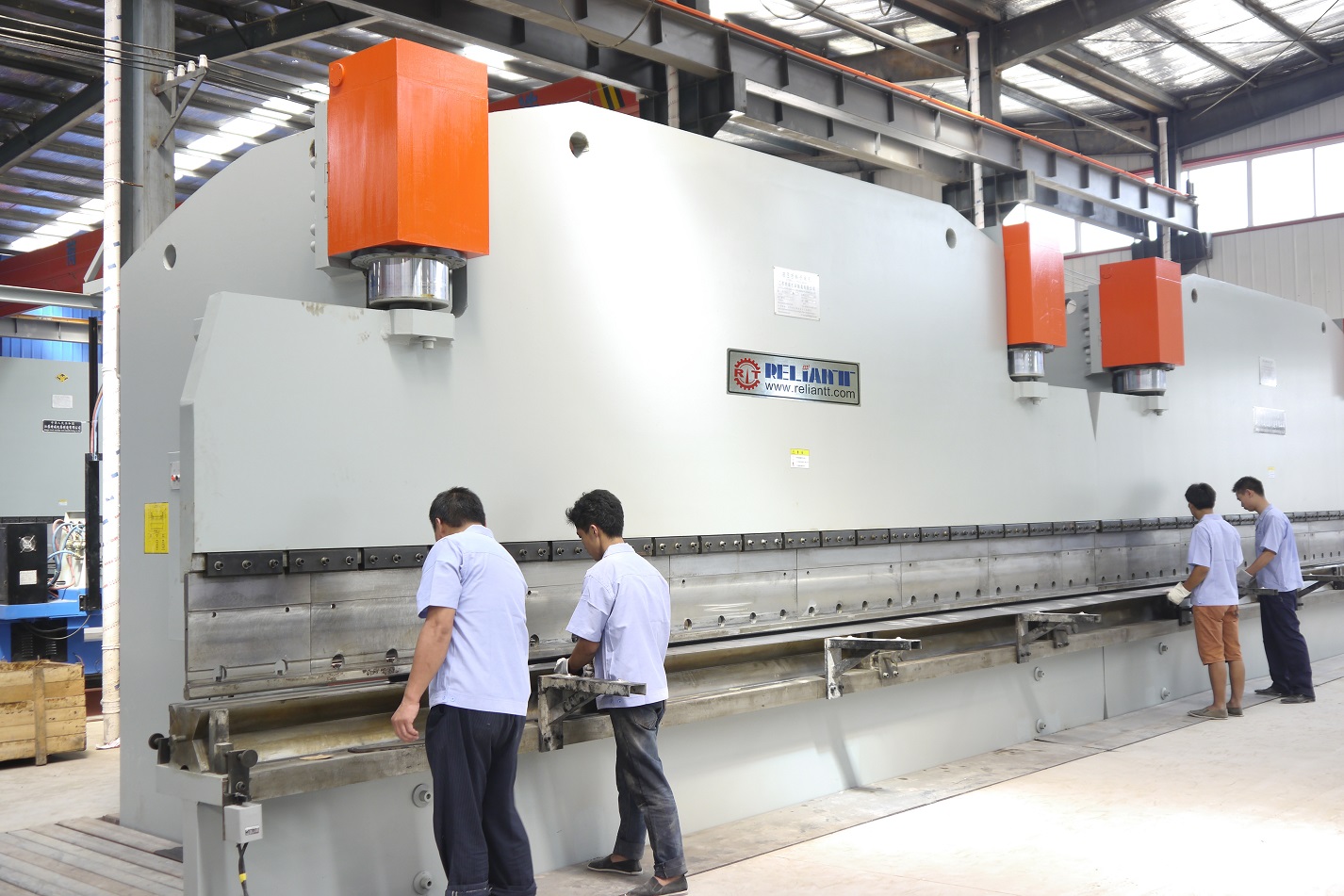

3. Tandem Press Brake
Tandem Press Brake is composed of two sets of Press Brake, CNC controlled synchronized together to work wither single or both together, accompanied OCTAGONAL & ROUND CONICAL bending Tooling.

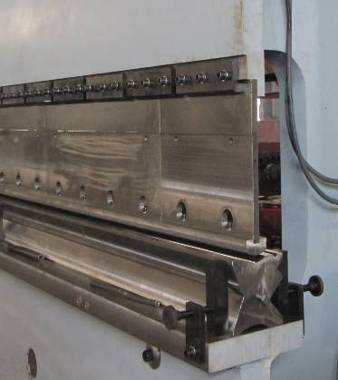

Tooling of Tandem Press Brake
(1). Upper dies:
Each for standard die handle and pressing die, detachable, length is 4000mm.

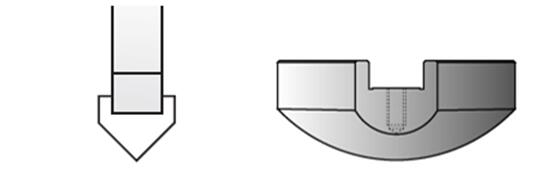

Polygon Upper Die Round Upper Die
(2). Bottom dies:
One set of combination die, V type bottom die open, length is 4000mm

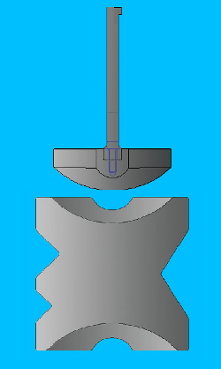

Combination Bottom Dies

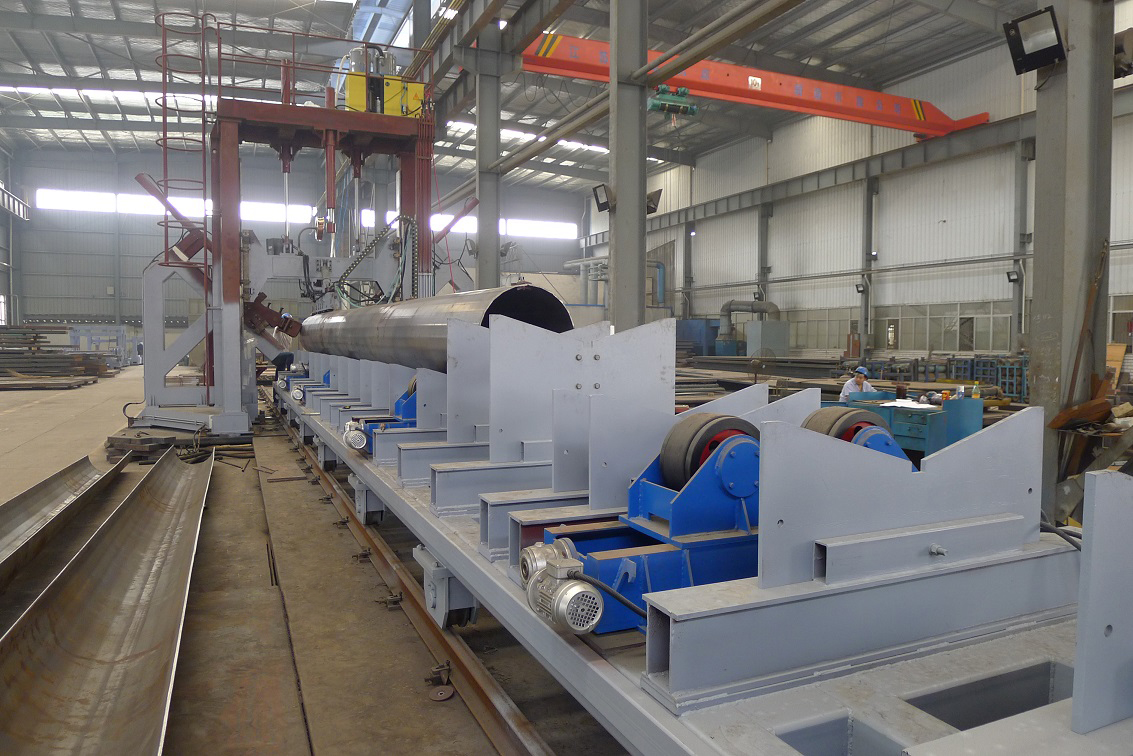

4. Automatic Pole Welding Machine
Automatic Pole Welding Machine is foreseen for automatic continuous submerged arc solid flux welding system. It should be capable of welding Octagonal, Multisided and Polygonal High Mast pre formed poles in single shell or double shell

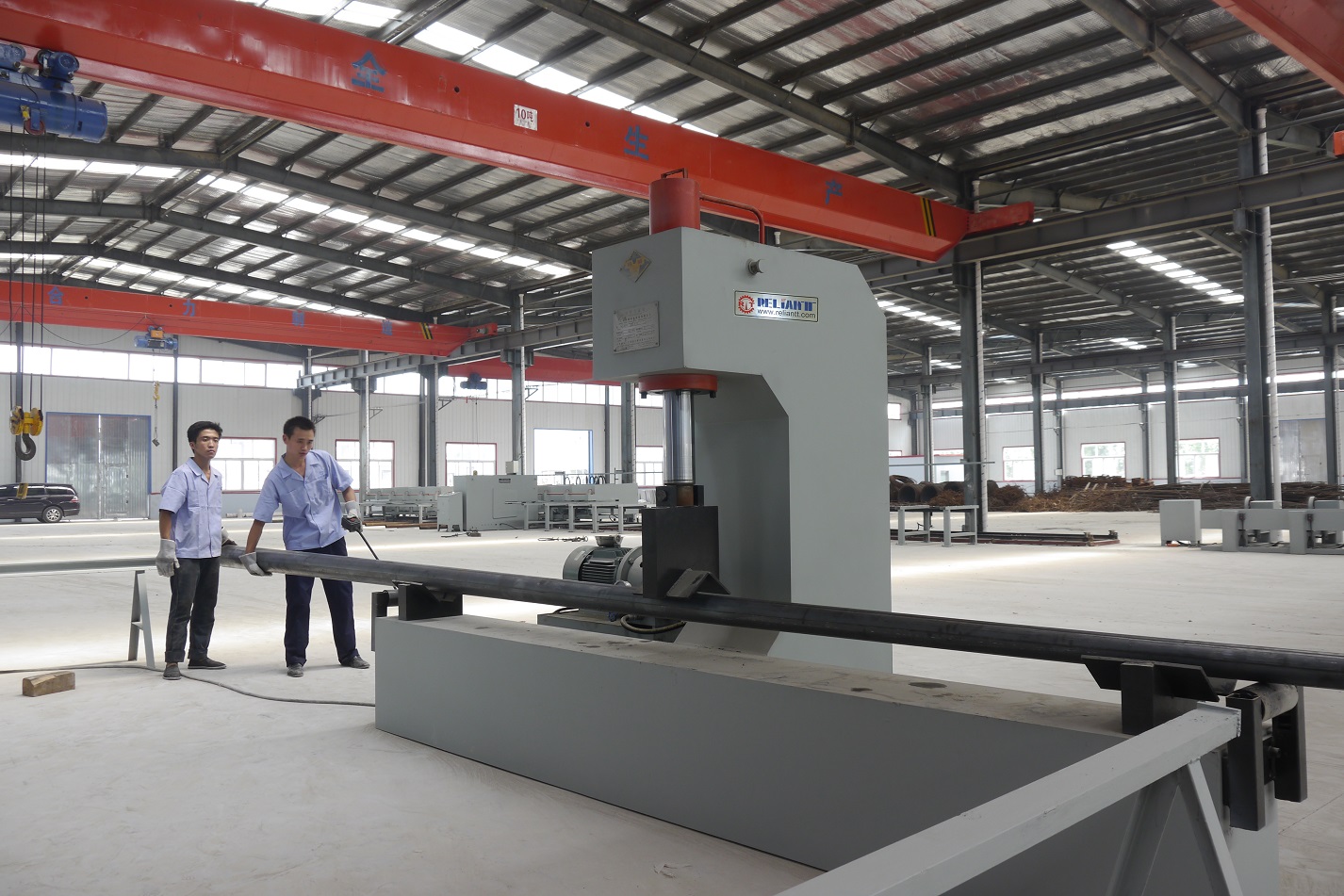

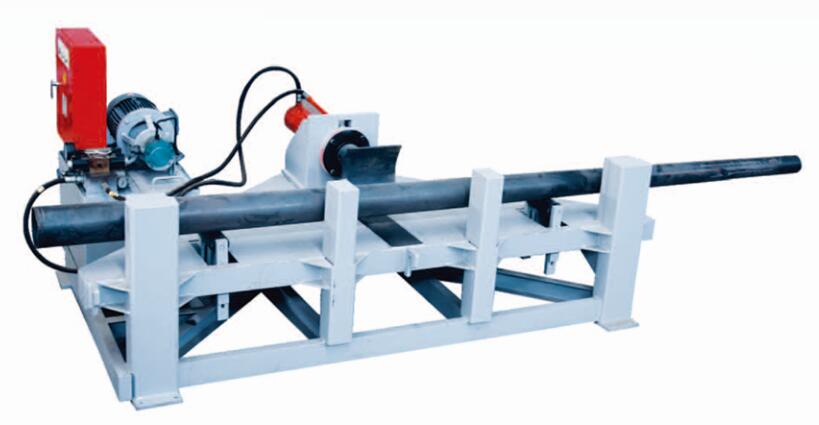

5. Pole Straightening Machine
Pole Straightening Machine is foreseen for straightening of poles, which become bended like banana shape after welding. It with heavy duty design & construction considering eafy way of loading and unloading of the poles. It has the capable of straightening Octagonal and Round Conical welded poles.

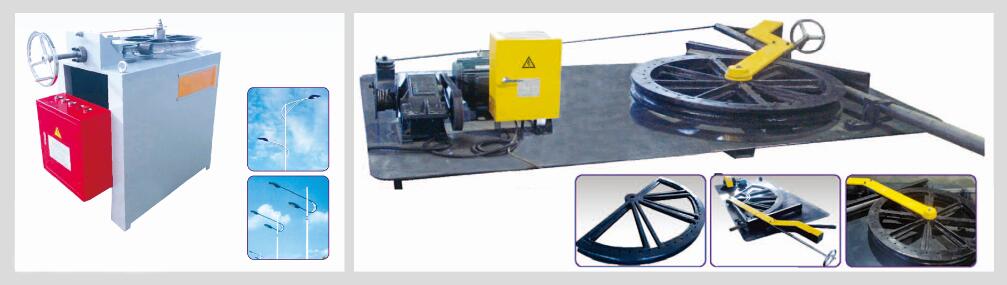

6. Pole Bending Machine
Pole Bending machine is foreseen for bending the top end of poles, suitable for bend the top end of the pole to various of angles.
7. Lamp door cutting
Lamp Door Cutting Machine is foreseen for cutting the door by latest high definition plasma cutting machine on the lighting pole for fixing of fuse plate. The door is generally open at height of 500mm to 2000mm from bottom side of the pole.

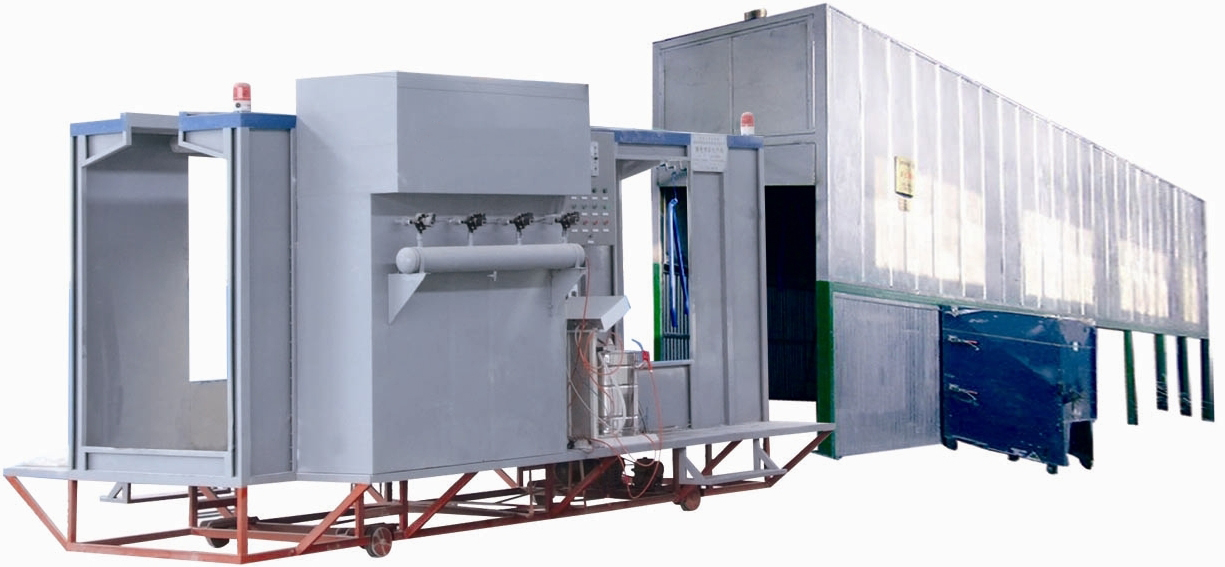

8. Electrostatic spray line
The room body is mainly assembled by hemming cold rolled sheets, which makes its structure simple and easy to cleaning up. The colored side has air bumping system and dustproof light. It’s convenient to facilitate the spraying operation.
Uses the assembled type, with outside corrugated sheet. The oven is tight, solid, and beautiful in appearance, and has good heat insulation performance. The temperature is controlled by the conventional electrical appliance, with hot air circulation, which guarantees the inside stove has average temperature to satisfy the solidification of the powder at 180℃±5℃.

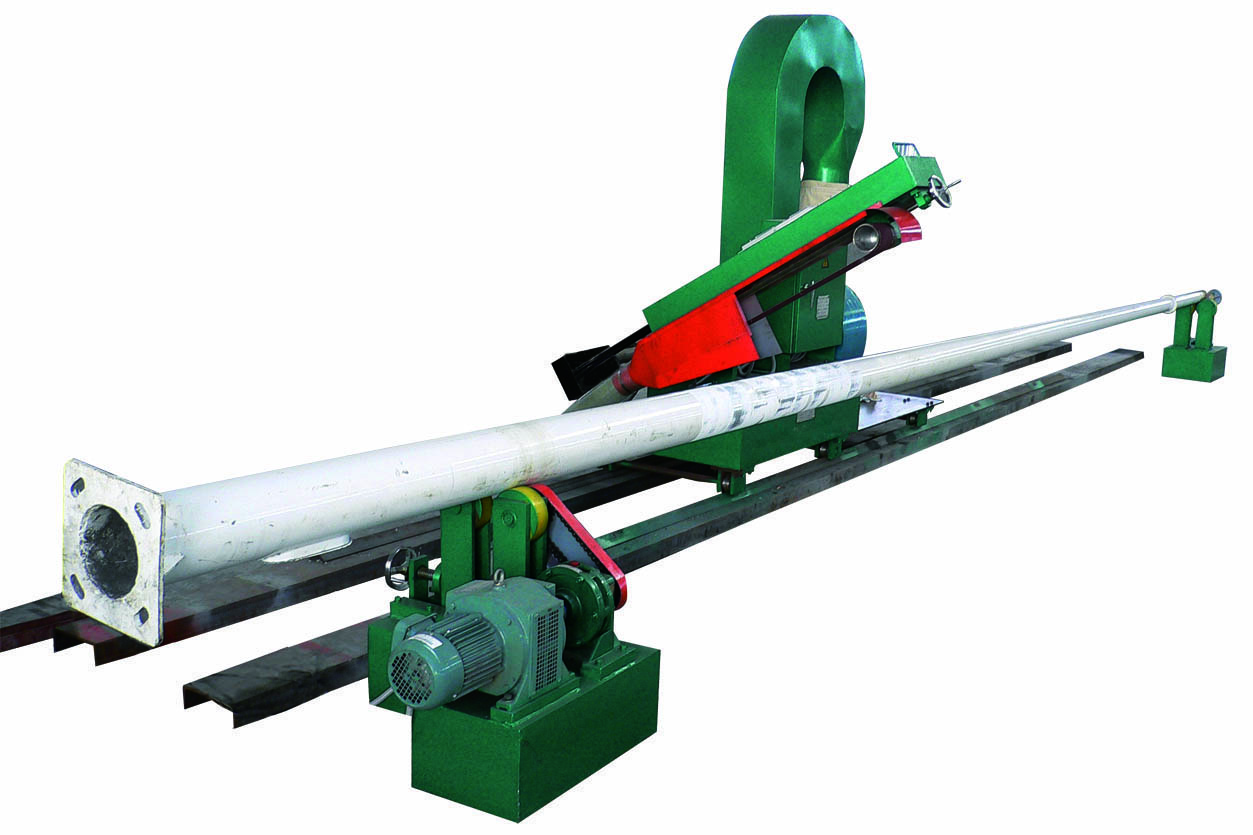

9. Automatic grinding polishing machine
This machine steel tube self-run and the movement of the machine in order to
Move the steel tube. The machine is fitted with grinding polishing bar, these grinding. Polishing bars will grind and polish the surface of steel tube quickly.

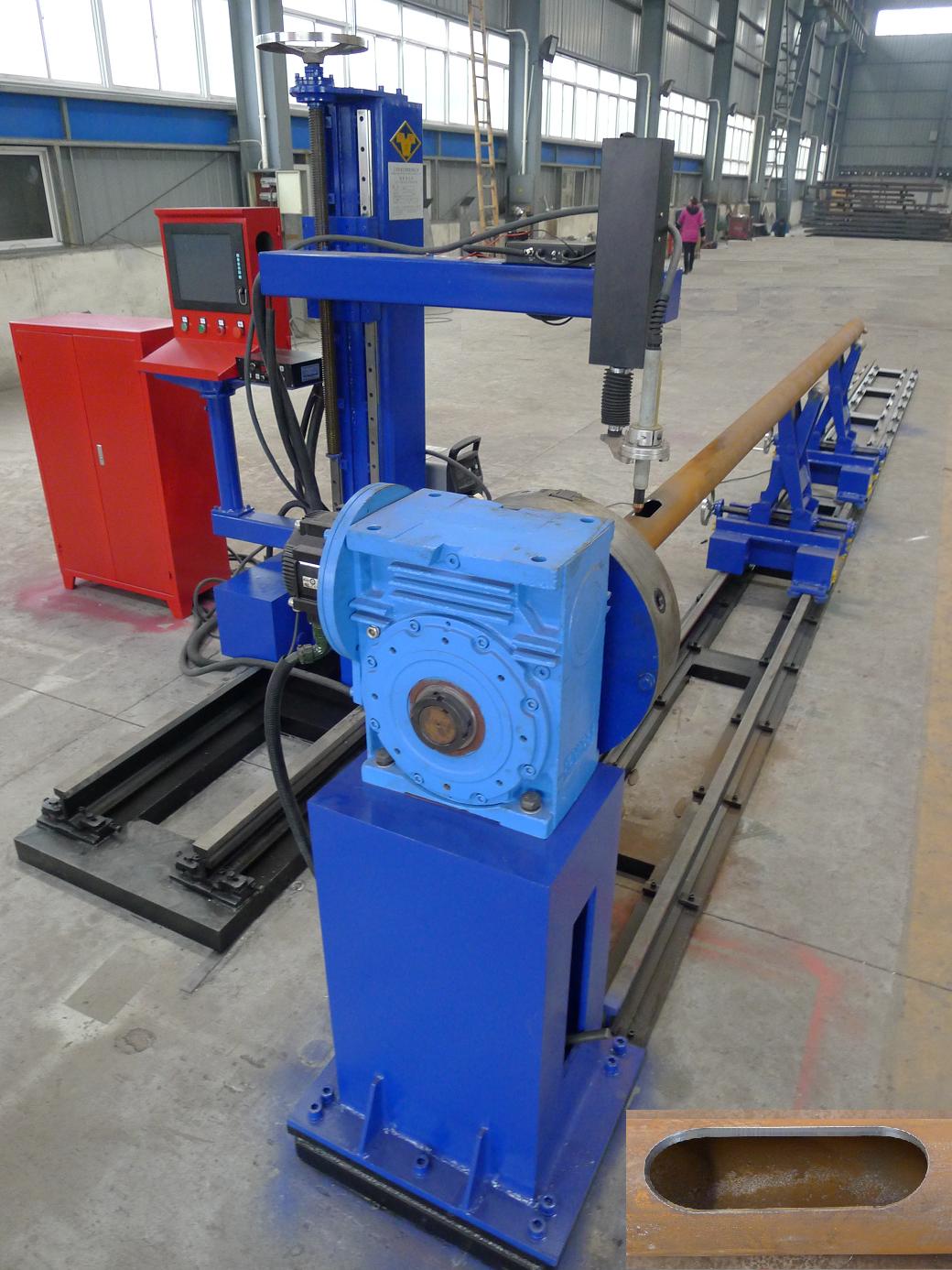

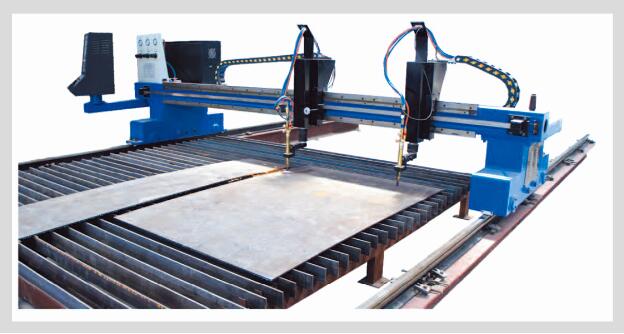

10. CNC Flame/Plasma Cutting Machine
CNC Flame/Plasma Cutting Machine is foreseedn for cutting the Base Plate to be fixed on the bottom of the lighting pole.
