We can also offer the FINISHED PRODUCTS for kinds of special profiles according to customers’ drawings, such as:

1. fireproof and heat insulation door and window partition

2. fireproof curtain wall according to customers’ drawings

3. Photovoltaic Solar support

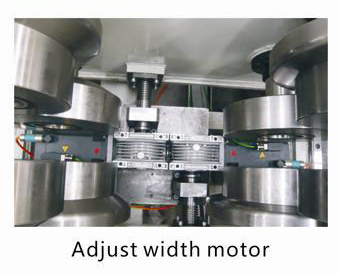

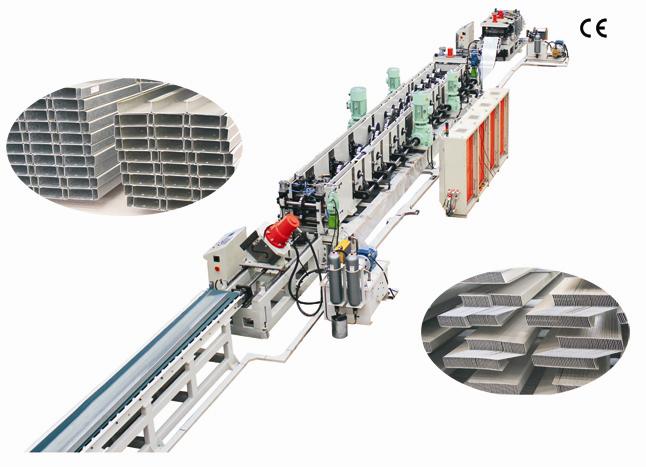

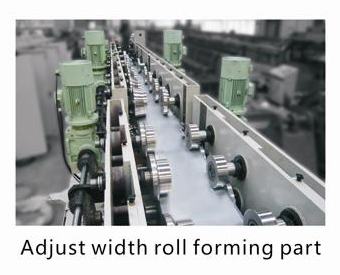

RT C & Sigma steel profile automatic high speed(40m/min,includes cutting & punching) rollformer---Width adjustable with motor, multiple profiles can be produced through quick adjustment. PLC central control whole line, includes uncoiler, loop, leveler & feeder, puncher, pre-cutter, quick adjust roll former, servo flying cutter, stacker, discharging, HIM operates, the whole line just needs one operator, many groups data can be set by one time, automatic producing, allocated with remote control, safety light curtain etc whole security systems, which is approved by CE.
The production line is at the top level in the same filed, it adopts high speed servo feeding and high performance press, it improves production efficiency and punching precision.

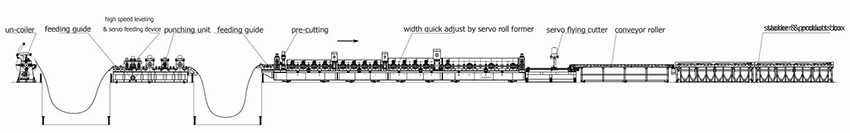

Process Flow
