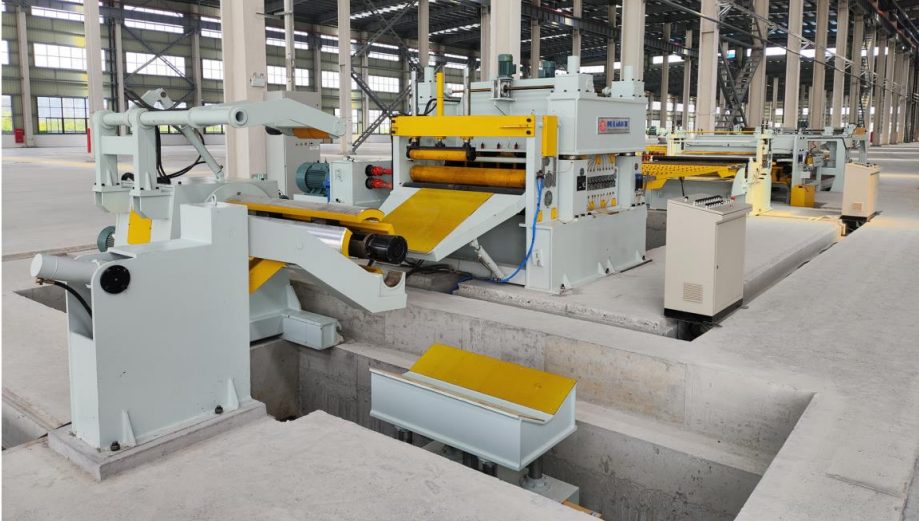

RTQC series high speed (0-80m/min leveling speed) metal/steel coil cut to length machine is also named cut to length line/ decoiling line/ shearing line/ leveling line/ blanking line.

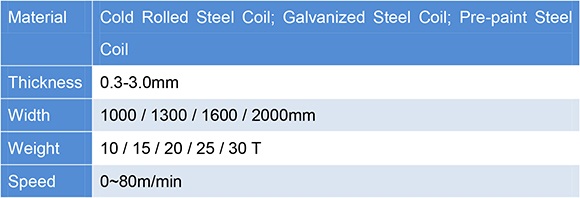

It is used for processing the CR/ pre-painted or galvanized steel and stainless steel coils less than 3mm thickness through decoiling, leveling & cutting then turned into flattened plate with desired length.

Process Flow

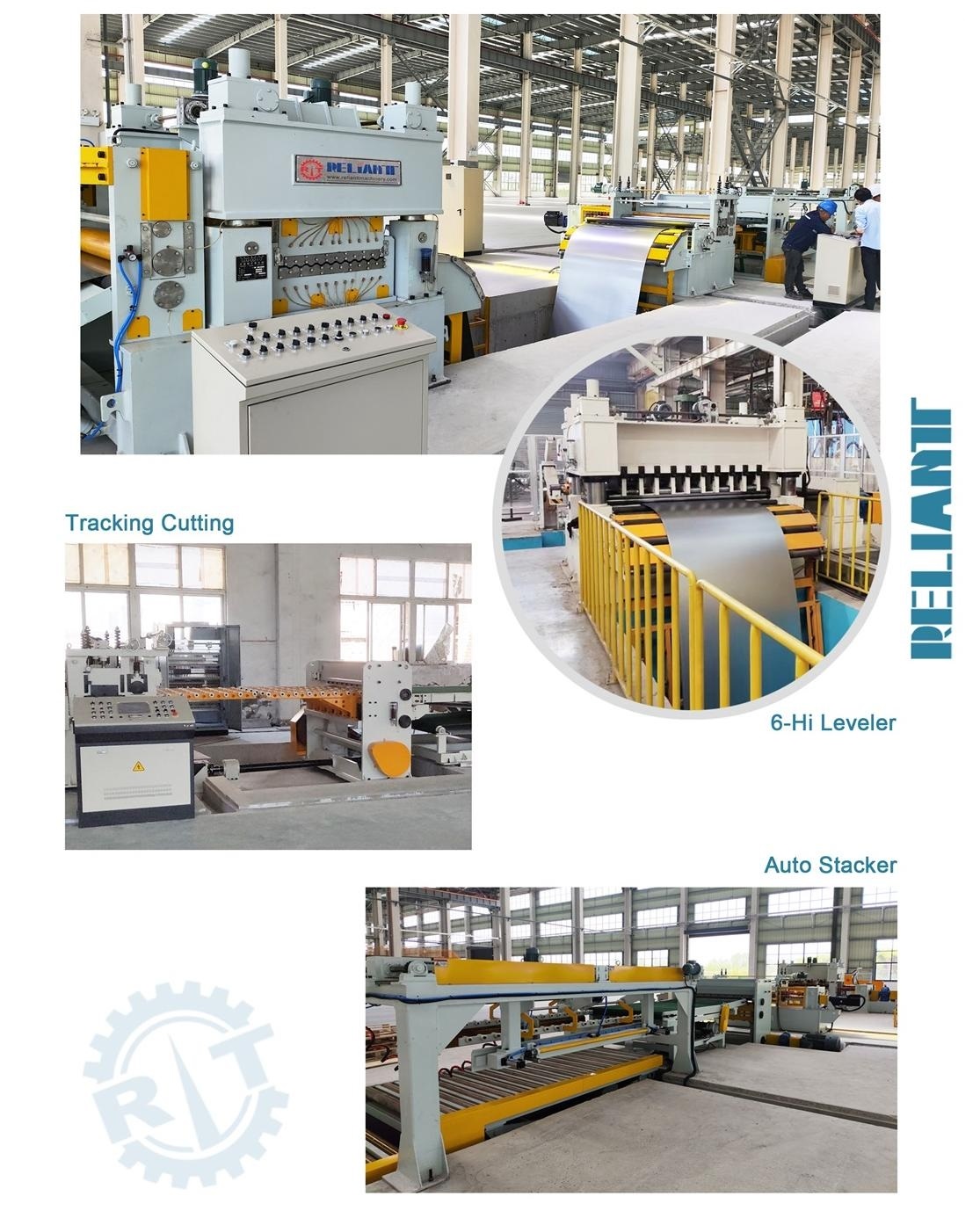

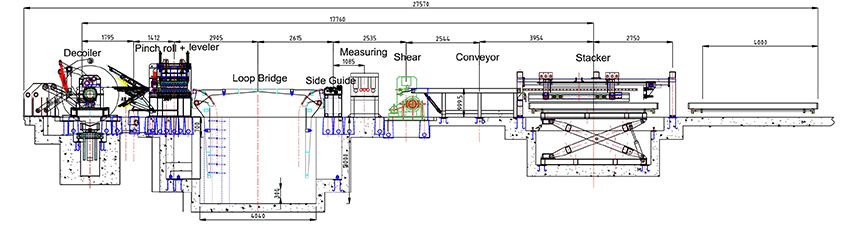

Coil lifter → hydraulic decoiler → snubber roller → pinch roll & pre-leveler → loop bridge → side guide roller → main leveling machine → encode & measuring device (with tail plate pinching) → shear → conveyor → hydraulic lift platform → stacker with blower device  → unload cart

We also can supply the low speed (0-24m/min) cut to length line, stainless steel cut to length machine, heavy gauge leveling line, and high speed/ low speed slitting line, heavy duty slitter machine, slitting and cut to length line.
