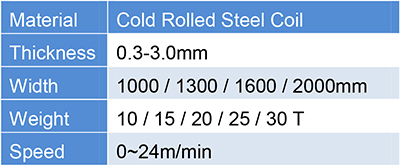

RTLC series Low Speed Metal Shearing Line (0-24m/min leveling speed) (i.e. Cut to Length Line, leveling line or blanking line) is used for processing the CR/HR steel coils less than 4mm thickness through decoiling, leveling & cutting then turned into flattened plate with desired length.

* It takes the centralized control with CNC control system. The cutting length, speed, pieces are all designed & controlled by the program.
* When it works automatically, the computer controls the whole process of leveling & shearing to compensate the error.
* When the need shearing number is reached the line can stop automatically.
* The line speed can be adjusted, it has a gauge with high precision, and whole line can work automatically and operate easily, smooth sheet can be made.

Process Flow

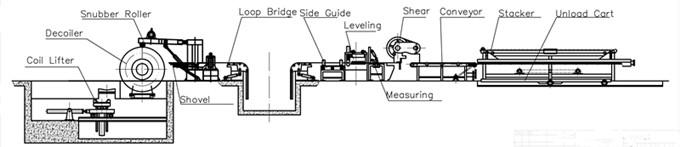

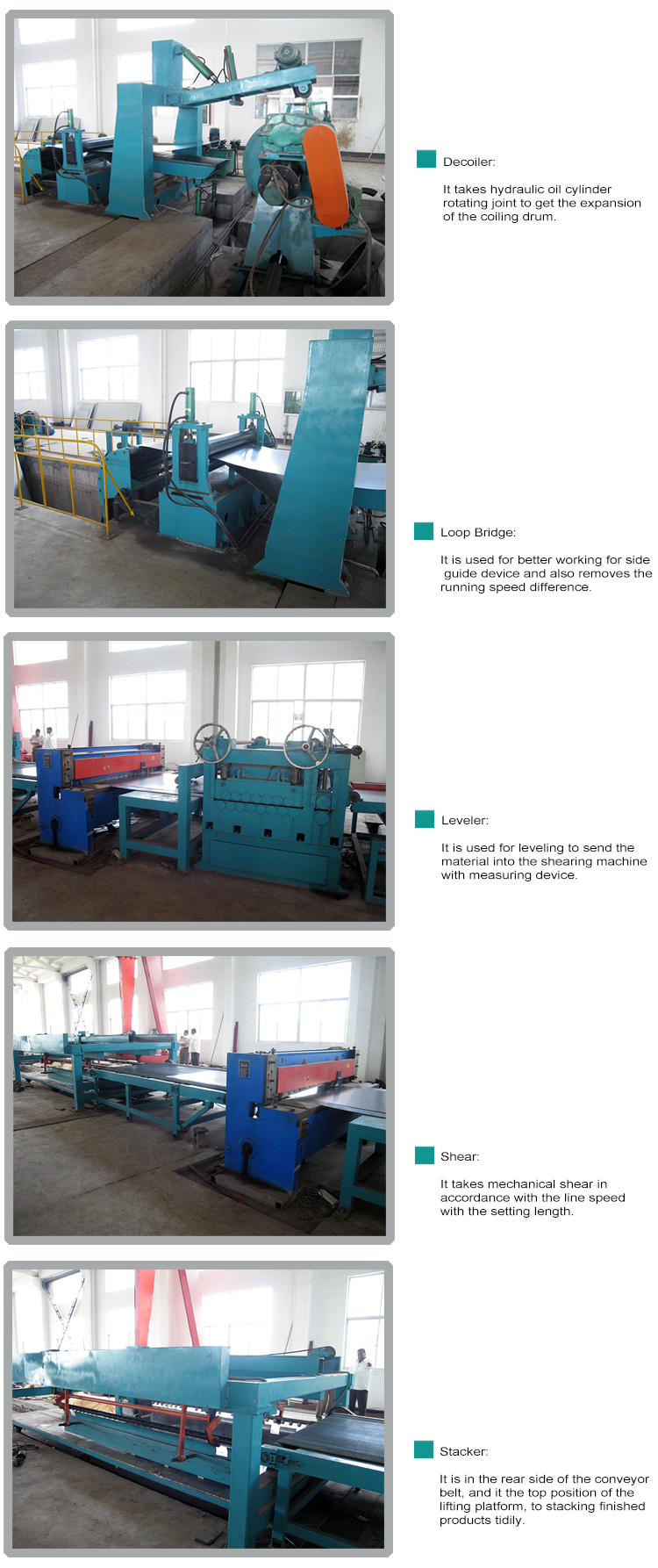

Storage platform --- coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll --- loop bridge --- side guide roller --- precision leveler --- measuring roller --- shearer --- conveyor --- stacker --- unload cart
