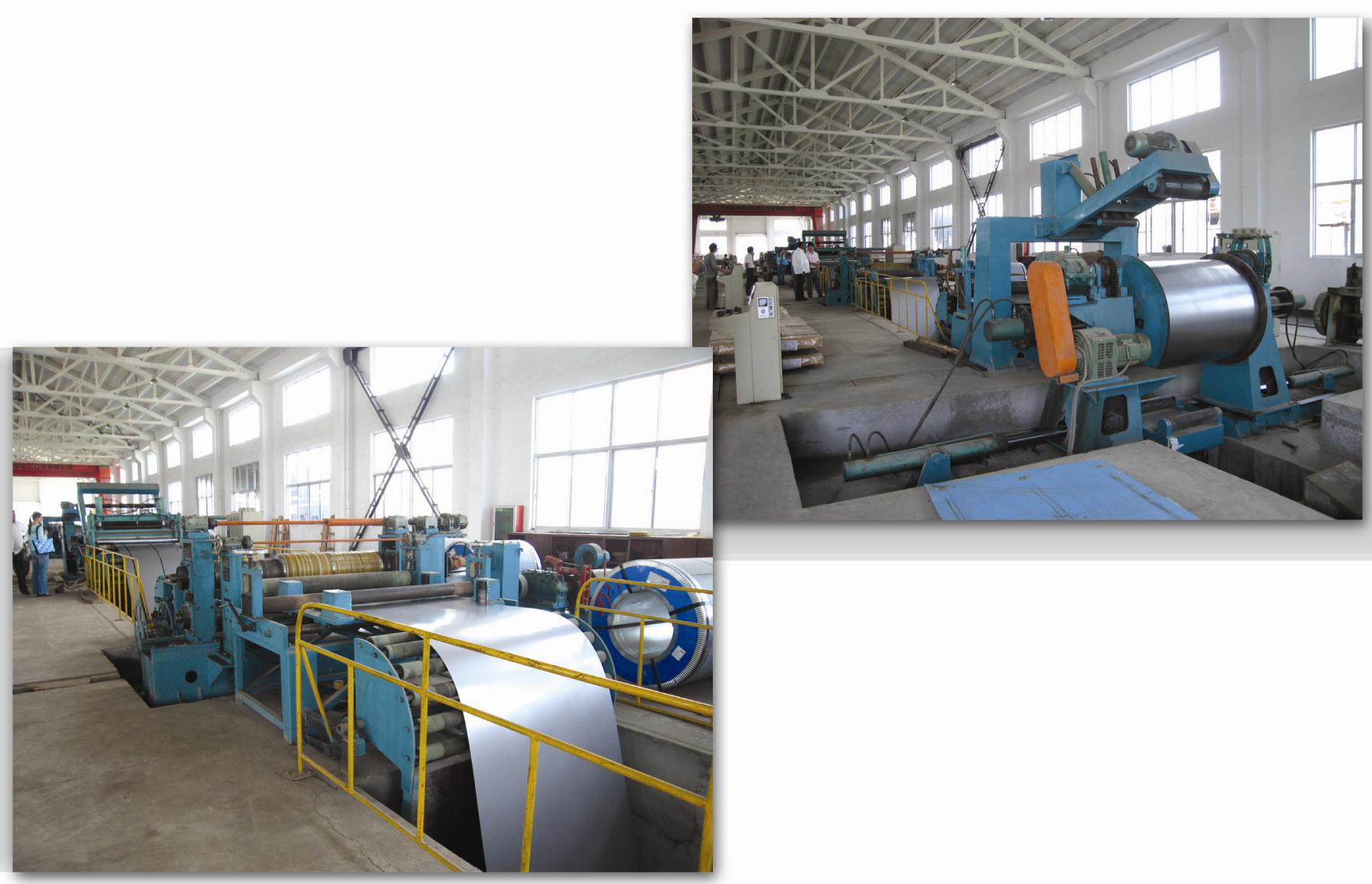

RTLS (0-60m/min slitting speed) Metal Coil Slitting Line (i.e. metal coil slitting machine/ slitter line) is used for processing the CR/HR, stainless steel, pre-painted or galvanized steel coils less than 6mm thickness into narrow steel strip coils with desired width.

Then the strips can be used for milling, welding pipe, cold bend forming, stamping as billet. At the same time, changing different material blade can slit various metal coils.

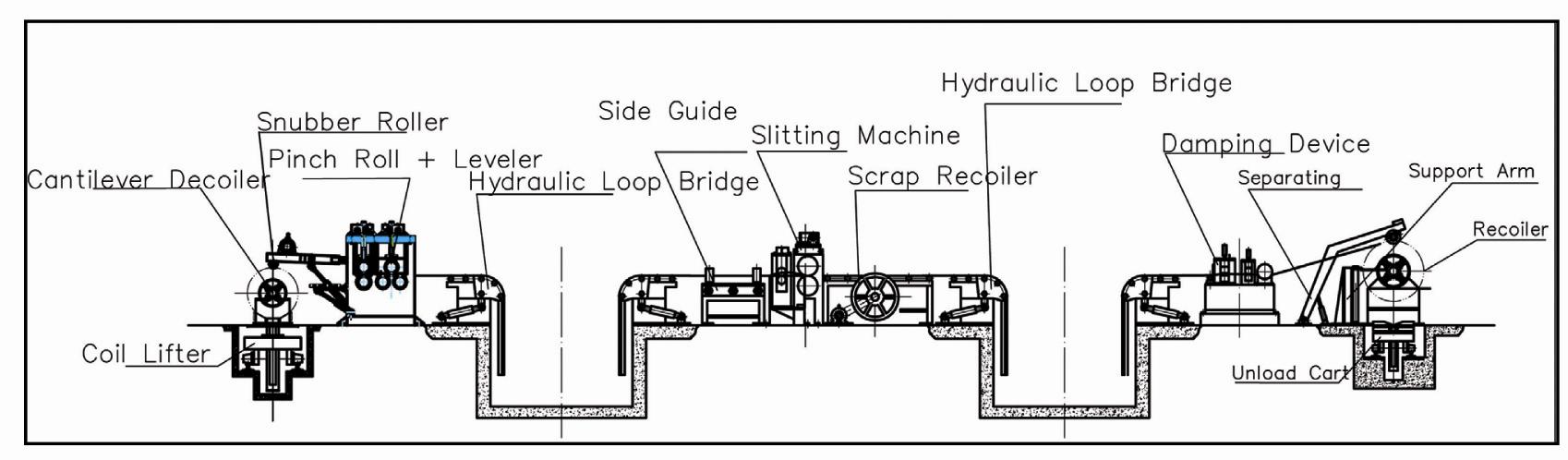

Flow Chart

Coil lifter → hydraulic decoiler → snubber roller → pinch roll → loop bridge → side guide roller → slitting machine → scrap recoiler → loop bridge → damping, separator & pressing device → recoiler → unload cart

We can also supply the high speed steel coil slitting line (0~120m/min), different type of cut to length lines, slitting and cut to length combined line.
